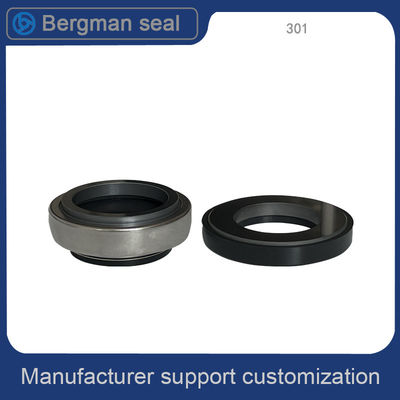

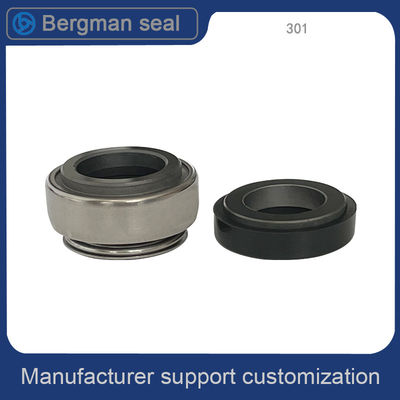

BT AR 301 Single End Dry Running Mechanical Seal 12mm 14mm Stainless Steel Spring
| Place of Origin | Guangzhou, China |
|---|---|
| Brand Name | Bogeman |
| Certification | ISO SGS |
| Model Number | BT-AR 301 |
| Minimum Order Quantity | 5/PCS |
| Price | US $ 1-68.8/PCS |
| Packaging Details | Carton |
| Delivery Time | 2/day |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 30000/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | BT-AR 301 | Speciflcation | Shaft Hole 6-70mm |
|---|---|---|---|
| Material | CAR CER SSIC TC NBR EPDM | Usage | Unbalanced |
| Traemark | Bergman | Origin | Guangzhou, China |
| High Light | SGS Dry Running Mechanical Seal,DIN24250 Dry Running Mechanical Seal,DIN24250 Single Spring Mechanical Seal |
||
Product Description
BT AR 301 Single End Dry Running Mechanical Seal 12mm 14mm Stainless Steel Spring
Burgmann Type BT AR 301 Self-Priming Pump Booster Pump Mechanical Seal
1. Operations Conditions:
| Structure: Single End |
| Pressure: Low Pressure Mechanical Seals |
| Speed: General Speed Mechanical Seal |
| Temperature: General Temperature Mechanical Seal |
| Performance: Wear |
| Standard: DIN24250 |
| Model NO.: Type 301, BT-AR |
| Balance: Unbalanced |
| Specification: Inner Diameter: 6 mm to 70 mm |
| Temperature:-30ºC to +200ºC |
| Pressure:≤0.6MPa |
| Speed:≤10m/s |
2.Materials:
| Structural Features: single end, unbalanced, independent direction of rotation, rubber bellow transmission. This component has a compact structure and it is easy to install. The bellow and the spring provide pressure compensation to the seal faces. The rubber bellow design prevents possible radial run-out so the floatabilitiy of the rotary ring is increased. |
| Stationary Ring:Ceramic(Alumina),Silicon Carbide Reaction Bonded |
| Rotary Ring:Q5,Resin Impregnated Carbon Graphite(Furan),Silicon Carbide Reaction Bonded |
| Secondary Seal:Fluorocarbon Rubber(),Nitrile(NBR),Ethylene Propylene(EPDM) |
| Spring and Metal Parts:Stainless Steel |
| Seat Types: |
| Applications:Clean Water |
3. Performance Capabilities:
|
Temperature
|
-30℃ to 200℃, dependent on the elastomer
|
|
Pressure
|
Up to 6 bar
|
|
Speed
|
Up to 10 m/s
|
|
End play/axial float allowance
|
±0.1mm
|
|
Size
|
6mm to 70mm
|
|
Brand
|
JR
|
|
Face
|
Carbon, SiC, TC
|
|
Seat
|
Ceramic, SiC, TC
|
|
Elastomer
|
NBR, EPDM, etc.
|
|
Spring
|
SS304, SS316
|
|
Metal parts
|
SS304, SS316
|
|
Packing Detail
|
1.From 8mm to 30mm is packed in plastic sheets grouply and M box.
2.From 32mm to 70mm is wrapped in plastic paper individually then grouply in M box. 3.Individual packing ,1 pc in 1 small box is available as well with cost of packing added. |
- 301mechanical Seals Factory Direct Sale Pump Seal 301 SeriesMechanical Seals Water Seal
- Enclosed rubber bellows mechanical seal 301 (BT-AR)
- Equivalent to:
-
BT-AR mechanical seal John Crane (Cyclam) PR/DR mechanical seal Flowserve 118 mechanical seal Latty T750 mechanical seal Roten 37B/ L5 mechanical seal Sterling BT mechanical seal Comonly used as the external seal in water cooled APV pumps
| Model | d1 mm | d3 | d6 | d7 | l1 | l3 |
| BGM 301-6 | 6 | 18 | 8 | 22 | 14 | 4 |
| BGM 301-8S | 8 | 18 | 10 | 22 | 15 | 4 |
| BGM 301-8M | 8 | 20 | 10 | 22/26 | 15/165 | 4/5.5 |
| BGM 301-8L | 8 | 24 | 10 | 26 | 16.5 | 55 |
| BGM 301-10 | 10 | 24 | 12 | 26 | 21 | 8 |
| BGM 301-11 | 11 | 24 | 13 | 26 | 21 | 8 |
| BGM 301-12 | 12 | 24 | 14 | 25/26 | 21 | 8 |
| EGM 301-13 | 13 | 24 | 15 | 26 | 18/21 | 5.5/8 |
| BGM 301-13L | 13 | 28 | 16 | 28 | 21 | 8 |
| BGM 301-13H | 13 | 32 | 16 | 29.5 | 30.5 | 8 |
| BGM 301-14 | 14 | 28 | 16 | 28128.5 | 210 | 8 |
| BGM 301-14L | 14 | 32 | 16 | 29.5 | 21 | 8 |
| BCM 301-15S | 15 | 28 | 16 | 28.5/30 | 21 | 8 |
| BGM 301-15M | 15 | 32 | 16 | 30/295 | 21 | 8 |
| BGM 301-15L | 15 | 39 | 18 | 38 | 21 | 8 |
| BGM 301-16S | 16 | 28 | 16 | 29.5/30 | 21 | 8 |
| BGM 301-1M | 16 | 32 | 18 | 29.5 | 21 | 8 |
| BGM 301-16L | 16 | 39 | 18 | 38 | 21 | 8 |
| BGM 301-16H | 16 | 32 | 16 | 30 | 29 | 10 |
| BGM301-17 | 17 | 39 | 19 | 42 | 21 | 8 |
| BGM 301-18 | 18 | 39 | 20 | 42 | 21 | 8 |
| Model | d1 mm | d3 | d6 | d7 | l1 | l3 |
| BGM301-19 | 19 | 39 | 21 | 42 | 21 | 8 |
| BGM 301-20 | 20 | 39 | 22 | 42 | 21 | 8 |
| BGM301-20L | 20 | 42 | 24 | 45 | 23 | 10 |
| BGM301-22s | 22 | 36 | 24 | 45 | 26.5 | 10 |
| BGM 301-22L | 22 | 42 | 24 | 45 | 23 | 10 |
| BGM301-23 | 23 | 47 | 25 | 50 | 23.5 | 10 |
| BGM 301-24 | 24 | 47 | 26 | 50 | 23.5 | 10 |
| BGM 301-25 | 25 | 42 | 27 | 50 | 23.5 | 10 |
| BGM 301-25L | 25 | 47 | 27 | 50 | 235 | 10 |
| BGM 301-23 | 26 | 47 | 29 | 50 | 23.5 | 10 |
| BGM 301-27 | 27 | 47 | 30 | 50 | 23.5 | 10 |
| 0GM 301-28 | 28 | 54 | 31 | 57 | 25 | 10 |
| BGM 301-30 | 30 | 54 | 33 | 57 | 25 | 10 |
| BGM 301-32 | 32 | 54 | 35 | 57 | 25 | 10 |
| BGM 301-35 | 35 | 60 | 38 | 63 | 26 | 10 |
| BGM 301-38 | 38 | 65 | 41 | 68 | 30 | 12 |
| BGM301-40 | 40 | 65 | 43 | 68 | 30 | 12 |
| BGM 301-45 | 45 | 70 | 48 | 73 | 32 | 12 |
| BGM 301-50 | 50 | 85 | 52 | 88 | 38 | 15 |
| BGM 301-55 | 55 | 85 | 58 | 88 | 38 | 15 |
| BGM 301-60 | 600 | 105 | 63 | 110 | 45 | 15 |
| BGM 301-65 | 65 | 105 | 110 | 47 | 15 | |
| 0GM301-70 | 70 | 105 | 110 | 47 | 15 |
We are a manufacturer. All seals have bulk inventory and can be shipped to you quickly. We promise to ship you in small quantities within 3 days.Advanced technology, excellence, replace original
1. Different models of mechanicals seals for a wide variety of Grundfos® pumps, among them: CR(N), NB, NK, CLM, LP, TP, etc. Available in diverse combinations of materials and different diameters: 12, 16, 22, 28, 33, etc. Also mechanical seals for Sarlin®. Division of waster pumps. Available in various materials: silicon-graphite carbide, silicon carbide-silicon carbide; combined with EPDM and FKM elastomers.
2. Mechanical seals are available for different references Gorman-Rupp® pumps. Special models for the transfer of clean water, sewage, oil industry, agriculture and others.
GRN-38'1
3. Mechanical seals for Fristam® pumps. Wide range of models and materials in the most standard diameters: 22,30 and 35 mm. Different assembly possibilities for the most well-known pump models: FP, FL and FT.
5. Broad range of mechanical seals compatible with Flygt® and Grindex® waste water pumps. These mechanical seals are characterized by their easy and fast installation, without having to make any modification to the pump. Manufactured in stainless steel and in solid tungsten carbide. Special tools are not necessary for their installation.
6. Mechanical seals for all types of Calpeda® pumps: centrifugal pumps, multistage, submersible. Different models of mechanical seals in a wide range of materials.
7. Mechanical seals compatible for APV® pumps, among them: Puma, ZMA, ZMB, ZMD, ZMS, ZMH, ZMK. Rosista® and Pasilac®, W and W+. Some designs with wave spring like the special seals for APV Howard® pumps and Crepaco Clean Line®. All of them have been manufactured in materials suitable for working with fluids such as juices, milk and drinks in general.
8. Allweiler, Simple design of mechanical seals simple but with special measures for this type of pump.
9. Different models of mechanical seals compatible for Alfa-Laval® pumps series CM, FM, MR, LKH,GM and ALC. Also the models for the range of lobular SSP and SR pumps. Mechanical seals in different combination of materials tungsten carbide, silicon carbide, graphite; combined with different types of elastomers: NBR, EPDM and FKM.
10. Mechanical seals for ABS® submergible pumps specific wastewater treatment. Different models of mechanical seal available: oil chamber mechanical seal and water mechanical seal.
Fixing and Applying Directions of Mechanical Seals
| 1. Select Appropriate mechanical seal to match the materials according to work conditions and host machine equipment. |
| 2. The radial acting deviation for the shaft(shaft sleeve) of the installed mechanical seal shall be 0.04mm by maximum while the axial movement value of the rotor shall be no more than 0.1mm. |
| 3. The seal cover (or shaft cover) of the stationary ring of the installed mechanical seals,the vertical degree of the seal face should be 0.04mm by maximum. |
| 4. When installing the mechanical seals,the shaft(shaft sleeve),seal chamber,seal face as well as the mechanical seal face should be 0.04mm by maximum. |
| 5. When conveying medium of over high or low temperature,with medium which are easy catch fire,easy for explosion.Related mechanical seal standards must be referred to take appropriate measures such as quench,rinsing,coolong and filtrating. |
| 6. Appropricate lubrication must be choosen when mechanical seal is installed.The installment size of the mechanical seal must be guaranteed to the installment instruction. |
| 7. Before the machine starts running,the hermetic compartment shall be full of medium and well lubricated.Dry friction which may lead to the damage of the air-tightness is strict forbidden. |
