Unbalanced Crane Mechanical Seals 19.05mm 25.4mm For Waster Pumps 92500150
| Place of Origin | Guangzhou, China |
|---|---|
| Brand Name | Bogeman |
| Certification | ISO SGS |
| Model Number | E- 520 |
| Minimum Order Quantity | 5/PCS |
| Price | US $ 0.6-28.8/PCS |
| Packaging Details | Carton |
| Delivery Time | 2/day |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 80000/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | E EA520 | Speciflcation | Shaft Hole 7.925-28.575mm |
|---|---|---|---|
| Material | CAR CER SSIC TC NBR EPDM | Usage | Unbalanced |
| Traemark | Bergman | Origin | Guangzhou, China |
| High Light | SGS Crane Mechanical Seals,25.4mm john crane seals,25.4mm Crane Mechanical Seals |
||
Product Description

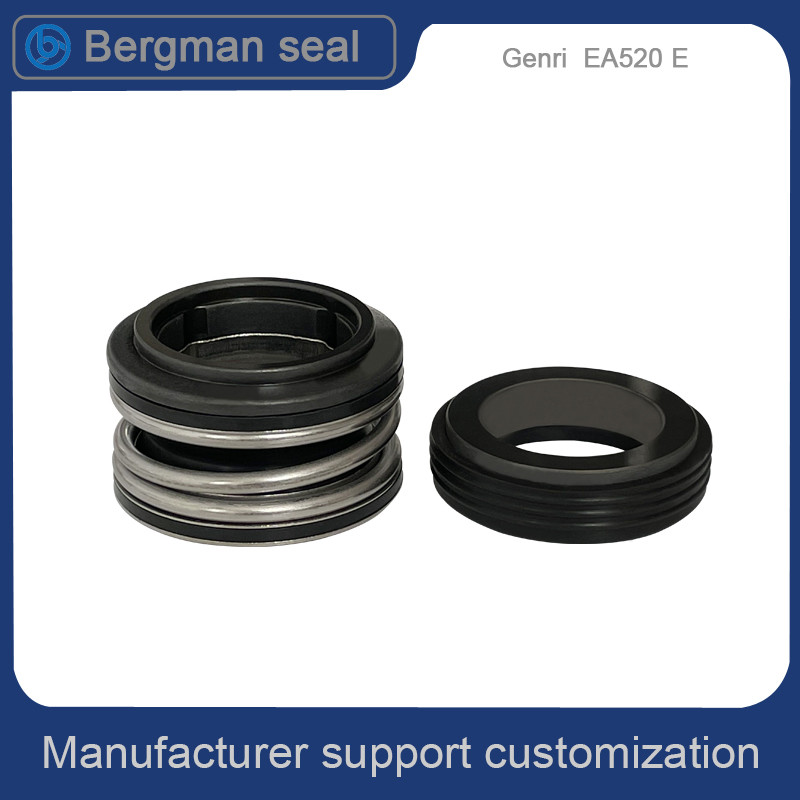

Unbalanced Crane Mechanical Seals 19.05mm 25.4mm For Waster Pumps 92500150
Mechanical Seal 92500150 E 1/2 5/8 3/4 1 Pump Seal Mechanical Seal
Basic Info.
Model NO.
BGM-E
Type
HU5
Balance
Balanced
Trademark
Bergman
Transport Package
Box
Specification
10cm*10cm*10cm
Origin
China
HS Code
84842000
Crane Mechanical Seals Replacement pump seal for Circ-Master, Flo-Master, XP, XP2, XP2e and XP3 HP/CP hot tub pumps.
This seal fits the following pump models:
| Circ-Master / Hush pump side discharge (HP) models and the centre discharge (CP) models. |
| Flo-Master series side discharge and centre discharge models. |
| Aqua-Flo XP2, all models |
| Aqua-Flo XP2e, all models |
| Aqua-Flo XP3, all models |
| Aqua-Flo by Gecko part #: 92500150 |
| Standard seal suitable for pumps used in standard Bromine/Chlorine environments |
|
Model |
d1(inches) |
d7 |
d3 |
d6 |
d2 |
l |
l3 |
|
BGM E-5/16 " |
7.925 |
25.4 |
27 |
16 |
20.63 |
24.6 |
8 |
|
BGM E-3/8" |
22.225 |
23.8 |
14.3 |
17.42 |
22.22 |
6.2 |
|
|
BGM E-1/2" |
25.4 |
26.97 |
17.45 |
20.63 |
22.8 |
6.2 |
|
|
30.1 |
30.94 |
20.63 |
23.8 |
26.5 |
8.7 |
||
|
BGM E-5/8"H |
31.75 |
30.94 |
20.63 |
23.8 |
30 |
10.3 |
|
|
BGM E-5/8 "K |
31.75 |
30.94 |
20.63 |
23.8 |
28.5 |
10.3 |
|
|
BGME-3/4"H |
34.925 |
34.11 |
23.8 |
26.87 |
30 |
10.3 |
|
|
BGM E-3/4"c |
34.925 |
34.11 |
23.8 |
26.87 |
28.5 |
10.3 |
|
|
BGM E-1" |
41.275 |
42.85 |
30.15 |
33.33 |
31.73 |
11.1 |
|
|
BGM E-11/8 " |
44.45 |
46 |
33.5 |
36.5 |
31.75 |
11.1 |
We are a manufacturer. All seals have bulk inventory and can be shipped to you quickly. We promise to ship you in small quantities within 3 days.Advanced technology, excellence, replace original
| 1. Different models of mechanicals seals for a wide variety of Grundfos® pumps, among them: CR(N), NB, NK, CLM, LP, TP, etc. Available in diverse combinations of materials and different diameters: 12, 16, 22, 28, 33, etc. Also mechanical seals for Sarlin®. Division of waster pumps. Available in various materials: silicon-graphite carbide, silicon carbide-silicon carbide; combined with EPDM and FKM elastomers. | |||||||||||||
| 2. Mechanical seals are available for different references Gorman-Rupp® pumps. Special models for the transfer of clean water, sewage, oil industry, agriculture and others. GRN-38'1 |
|||||||||||||
| 3. Mechanical seals for Fristam® pumps. Wide range of models and materials in the most standard diameters: 22,30 and 35 mm. Different assembly possibilities for the most well-known pump models: FP, FL and FT. | |||||||||||||
| 4. Broad range of mechanical seals compatible with Flygt® and Grindex® waste water pumps. These mechanical seals are characterized by their easy and fast installation, without having to make any modification to the pump. Manufactured in stainless steel and in solid tungsten carbide. Special tools are not necessary for their installation. | |||||||||||||
| 5. Allweiler, Simple design of mechanical seals simple but with special measures for this type of pump. | |||||||||||||
| 6. Different models of mechanical seals compatible for Alfa-Laval® pumps series CM, FM, MR, LKH,GM and ALC. Also the models for the range of lobular SSP and SR pumps. Mechanical seals in different combination of materials tungsten carbide, silicon carbide, graphite; combined with different types of elastomers: NBR, EPDM and FKM. | |||||||||||||
| 7. Mechanical seals for ABS® submergible pumps specific wastewater treatment. Different models of mechanical seal available: oil chamber mechanical seal and water mechanical seal. |
Fixing and Applying Directions of Mechanical Seals
1. Select Appropriate mechanical seal to match the materials according to work conditions and host machine equipment.
2. The radial acting deviation for the shaft(shaft sleeve) of the installed mechanical seal shall be 0.04mm by maximum
while the axial movement value of the rotor shall be no more than 0.1mm.
3. The seal cover (or shaft cover) of the stationary ring of the installed mechanical seals,the vertical degree of the seal
face should be 0.04mm by maximum.
4. hen installing the mechanical seals,the shaft(shaft sleeve),seal chamber,seal face as well as the mechanical seal
must be cleaned in order to keep from any medium to sealing part.
5. When conveying medium of over high or low temperature,with medium which are easy catch fire,easy for explosion.
Related mechanical seal standards must be referred to take appropriate measures such as quench,rinsing,coolong and
filtrating.
6. Before the machine starts running,the hermetic compartment shall be full of medium and well lubricated.Dry friction
which may lead to the damage of the air-tightness is strict forbidden.
