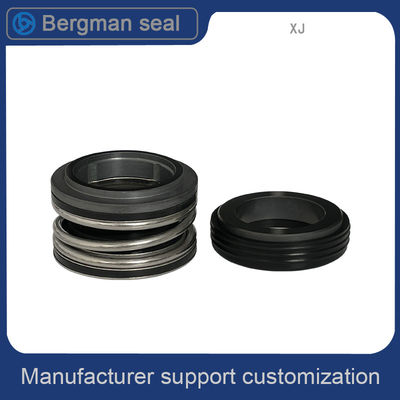

92500150 HU5 Wilo Pump Mechanical Seal 19.05mm 25.4mm For Circ Master

Place of Origin Guangzhou, China
Brand Name Bogeman
Certification ISO SGS
Model Number E-EA520
Minimum Order Quantity 5/PCS
Price US $ 1.8-32.8/PCS
Packaging Details Carton
Delivery Time 2/day
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100000/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model E EA520 Speciflcation Shaft Hole 7.925-28.575mm
Material CAR CER SSIC TC NBR EPDM Usage Balanced
Traemark Bergman Origin Guangzhou, China
High Light

25.4mm Wilo Pump Mechanical Seal

,

Balanced Wilo Pump Mechanical Seal

,

19.05mm Pump Mechanical Seal

Leave a Message
Product Description

92500150 HU5 Wilo Pump Mechanical Seal 19.05mm 25.4mm For Circ Master



Mechanical Seal 92500150 E 1/2 5/8 3/4 1 Pump Seal Mechanical Seal



Basic Info.

Model NO.

BGM-E

Type

HU5

Balance

Balanced

Trademark

Bergman

Transport Package

Box

Specification

10cm*10cm*10cm

Origin

China

HS Code

84842000



Replacement pump seal for Circ-Master, Flo-Master, XP, XP2, XP2e and XP3 HP/CP hot tub pumps.

This seal fits the following pump models:

Circ-Master / Hush pump side discharge (HP) models and the centre discharge (CP) models.
Flo-Master series side discharge and centre discharge models.
Aqua-Flo XP2, all models
Aqua-Flo XP2e, all models
Aqua-Flo XP3, all models
Aqua-Flo by Gecko part #: 92500150
Standard seal suitable for pumps used in standard Bromine/Chlorine environments







Model

d1(inches)

d7

d3

d6

d2

l

l3

BGM E-5/16 "

7.925
9.520
12.700
15.875
15.875
15.875
19.050
19.050
25.400
28.575

25.4

27

16

20.63

24.6

8

BGM E-3/8"

22.225

23.8

14.3

17.42

22.22

6.2

BGM E-1/2"
BGM E-5/8"

25.4

26.97

17.45

20.63

22.8

6.2

30.1

30.94

20.63

23.8

26.5

8.7

BGM E-5/8"H

31.75

30.94

20.63

23.8

30

10.3

BGM E-5/8 "K

31.75

30.94

20.63

23.8

28.5

10.3

BGME-3/4"H

34.925

34.11

23.8

26.87

30

10.3

BGM E-3/4"c

34.925

34.11

23.8

26.87

28.5

10.3

BGM E-1"

41.275

42.85

30.15

33.33

31.73

11.1

BGM E-11/8 "

44.45

46

33.5

36.5

31.75

11.1



92500150 HU5 Wilo Pump Mechanical Seal 19.05mm 25.4mm For Circ Master 092500150 HU5 Wilo Pump Mechanical Seal 19.05mm 25.4mm For Circ Master 1





We are a manufacturer. All seals have bulk inventory and can be shipped to you quickly. We promise to ship you in small quantities within 3 days.Advanced technology, excellence, replace original



1. Different models of mechanicals seals for a wide variety of Grundfos® pumps, among them: CR(N), NB, NK, CLM, LP, TP, etc. Available in diverse combinations of materials and different diameters: 12, 16, 22, 28, 33, etc. Also mechanical seals for Sarlin®. Division of waster pumps. Available in various materials: silicon-graphite carbide, silicon carbide-silicon carbide; combined with EPDM and FKM elastomers.

2. Mechanical seals for EMU® pumps. They get two static faces and one rotating face. We can supply the complete seal or spare faces.

3. Different designs of mechanical seals for Ebara® pumps, single and double seals in combinations carbide-silicon carbide and graphite-aluminium oxide.

4. Mechanical seals for all types of Calpeda® pumps: centrifugal pumps, multistage, submersible. Different models of mechanical seals in a wide range of materials.

5. Mechanical seals compatible for APV® pumps, among them: Puma, ZMA, ZMB, ZMD, ZMS, ZMH, ZMK. Rosista® and Pasilac®, W and W+. Some designs with wave spring like the special seals for APV Howard® pumps and Crepaco Clean Line®. All of them have been manufactured in materials suitable for working with fluids such as juices, milk and drinks in general.

6. Allweiler, Simple design of mechanical seals simple but with special measures for this type of pump.

7. Different models of mechanical seals compatible for Alfa-Laval® pumps series CM, FM, MR, LKH,GM and ALC. Also the models for the range of lobular SSP and SR pumps. Mechanical seals in different combination of materials tungsten carbide, silicon carbide, graphite; combined with different types of elastomers: NBR, EPDM and FKM.

8. Mechanical seals for ABS® submergible pumps specific wastewater treatment. Different models of mechanical seal available: oil chamber mechanical seal and water mechanical seal.

92500150 HU5 Wilo Pump Mechanical Seal 19.05mm 25.4mm For Circ Master 292500150 HU5 Wilo Pump Mechanical Seal 19.05mm 25.4mm For Circ Master 3


Fixing and Applying Directions of Mechanical Seals



1. Select Appropriate mechanical seal to match the materials according to work conditions and host machine equipment.
2. The radial acting deviation for the shaft(shaft sleeve) of the installed mechanical seal shall be 0.04mm by maximum while the axial movement value of the rotor shall be no more than 0.1mm.
3. The seal cover (or shaft cover) of the stationary ring of the installed mechanical seals,the vertical degree of the seal face should be 0.04mm by maximum.
5. When conveying medium of over high or low temperature,with medium which are easy catch fire,easy for explosion.Related mechanical seal standards must be referred to take appropriate measures such as quench,rinsing,coolong and filtrating.
6. Appropricate lubrication must be choosen when mechanical seal is installed.The installment size of the mechanical seal must be guaranteed to the installment instruction.
7. Before the machine starts running,the hermetic compartment shall be full of medium and well lubricated.Dry friction which may lead to the damage of the air-tightness is strict forbidden.
