18mm Machinery Seals Multi Spring Mechanical Seal M74F Burgmann

Place of Origin Guangzhou, China
Brand Name Bogeman
Certification ISO SGS
Model Number M74F
Minimum Order Quantity 1/PCS
Price US $ 18.8-268.8/PCS
Packaging Details Carton
Delivery Time 8/day
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model M74F Speciflcation Shaft Hole 18-100mm
Material CAR SSIC TC NBR EPDM FEP Usage Double Seal
Traemark Bergman Origin Guangzhou, China
High Light

18mm Machinery Seals

,

18mm Multi Spring Mechanical Seal

,

100mm Multi Spring Mechanical Seal

Leave a Message
Product Description

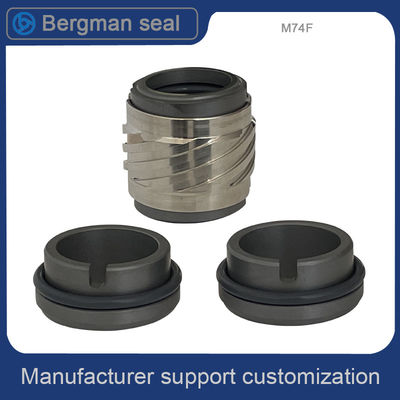

18mm Machinery Seals Multi Spring Mechanical Seal M74F Burgmann



Machinery Seal M74F Double Seal Multiple Spring Mechanical Seals Burgmann





Model NO.
M74F
Type
HUU803
Balance
Unbalanced
Usage
Wide
Trademark
Bergman
Transport Package
Carton or Plywood Box
Specification
SGS
Origin
Shanghai China
HS Code
84842000



M74F SERIES MECHANICAL SEAL
Applicable Range:

Pressure in the seal chamber: 0-1.5MPa
Temperature in the seal chamber: -30ºC------180ºC
Linear Velocity: ≤20m/s
Medium: water,polluted water,oil and minor corrosive liquid
Static ring code: G4,G13,G9,G60 G6


Features:
For plain shafts
Rotating multiple spring
Independent of direction of rotation
Flexibility in torque transmissions
High flexibility due to wide offer on materials



Materials:

Rotating face: silicon carbide,graphite,tungsten carbide.
Stationary face: silicon carbide, tungsten carbide
Elastomers: ,NBR,EDPM.


Applications:
Process industry
Chemical industry
Pulp and paper industry
Water and waste water technology
Sugar industry
Adhesives Chemical standard pumps
Model & Specification:



Seal sized(mm) d3 d6 d7 d8 l1 l3 l8 l9 Mx
18 33
35
27 33 3 61 38 19.5 11.5 M5
20 35 29 35 3 61 38 19.5 11.5 M5
22 37 31 37 3 61 38 19.5 11.5 M5
24 39 33 39 3 61 38 19.5 11.5 M5
25 40 34 40 3 61 38 19.5 11.5 M5
28 43 37 43 3 62 39 19.5 11.5 M6
3o 45 39 45 3 62 39 19.5 11.5 M6
32 47 42 48 3 62 39 19.5 11.5 M6
33 48 42 48 3 62 39 19.5 11.5 M6
35 5o 44 50 3 62 39 19.5 11.5 M6
38 55 49 56 4 69 41 22 14 M6
40 57 51 58 4 70 42 22 14 M6
43 60 54 61 4 70 42 22 14 M6
45 62 56 63 4 70 42 22 14 M6
48 65
67
59 66 4 70 42 22 14 M6
50 67 62 70 4 73 43 23 15 M6
53 70 65 73 4 73 43 23 15 M6
55 72 67 75 4 73 43 23 15 M8
58 79 70 78 4 86 56 23 15 M8
60 81 72 80 4 86 56 23 15 M8
63 84 75 83 4 85.0
85.0
91.0
92.0
55 23 15 M8
65 86 77 85 4 85.0
85.0
91.0
92.0
55 23 15 M8
68 89 81 90 4 91 55 26 18 M8
70 91 83 92 4 92 56 26 18 M8
75 99 88 97 4 92 56 26 18 M8
80 104 95 105 4 92.5 56 26.2 18.2 M8
85 109 100 110 4 92.5 56 26.2 18.2 M8
90 114 105 115 4 92.5 56 26.2 18.2 M8
95 119 110 120 4 90.5 56 25.2 17.2 M8
100 124 115 125 4 90.5 56 25.2 17.2 M8



18mm Machinery Seals Multi Spring Mechanical Seal M74F Burgmann 018mm Machinery Seals Multi Spring Mechanical Seal M74F Burgmann 1

We are a manufacturer. All seals have bulk inventory and can be shipped to you quickly. We promise to ship you in small quantities within 3 days.Advanced technology, excellence, replace original



1. Different models of mechanicals seals for a wide variety of Grundfos® pumps, among them: CR(N), NB, NK, CLM, LP, TP, etc. Available in diverse combinations of materials and different diameters: 12, 16, 22, 28, 33, etc. Also mechanical seals for Sarlin®. Division of waster pumps. Available in various materials: silicon-graphite carbide, silicon carbide-silicon carbide; combined with EPDM and FKM elastomers.

2. Mechanical seals are available for different references Gorman-Rupp® pumps. Special models for the transfer of clean water, sewage, oil industry, agriculture and others.
GRN-38'1

3. Mechanical seals for Fristam® pumps. Wide range of models and materials in the most standard diameters: 22,30 and 35 mm. Different assembly possibilities for the most well-known pump models: FP, FL and FT.

4. Mechanical seals for EMU® pumps. They get two static faces and one rotating face. We can supply the complete seal or spare faces.

5. Different designs of mechanical seals for Ebara® pumps, single and double seals in combinations carbide-silicon carbide and graphite-aluminium oxide.

6. Mechanical seals for all types of Calpeda® pumps: centrifugal pumps, multistage, submersible. Different models of mechanical seals in a wide range of materials.

7. Mechanical seals compatible for APV® pumps, among them: Puma, ZMA, ZMB, ZMD, ZMS, ZMH, ZMK. Rosista® and Pasilac®, W and W+. Some designs with wave spring like the special seals for APV Howard® pumps and Crepaco Clean Line®. All of them have been manufactured in materials suitable for working with fluids such as juices, milk and drinks in general.

8. Different models of mechanical seals compatible for Alfa-Laval® pumps series CM, FM, MR, LKH,GM and ALC. Also the models for the range of lobular SSP and SR pumps. Mechanical seals in different combination of materials tungsten carbide, silicon carbide, graphite; combined with different types of elastomers: NBR, EPDM and FKM.

9. Mechanical seals for ABS® submergible pumps specific wastewater treatment. Different models of mechanical seal available: oil chamber mechanical seal and water mechanical seal.



18mm Machinery Seals Multi Spring Mechanical Seal M74F Burgmann 218mm Machinery Seals Multi Spring Mechanical Seal M74F Burgmann 3



Fixing and Applying Directions of Mechanical Seals


1. Select Appropriate mechanical seal to match the materials according to work conditions and host machine equipment.
2. The radial acting deviation for the shaft(shaft sleeve) of the installed mechanical seal shall be 0.04mm by maximum
while the axial movement value of the rotor shall be no more than 0.1mm.
3. The seal cover (or shaft cover) of the stationary ring of the installed mechanical seals,the vertical degree of the seal
face should be 0.04mm by maximum.
4. When installing the mechanical seals,the shaft(shaft sleeve),seal chamber,seal face as well as the mechanical seal
must be cleaned in order to keep from any medium to sealing part.
5. When conveying medium of over high or low temperature,with medium which are easy catch fire,easy for explosion.
Related mechanical seal standards must be referred to take appropriate measures such as quench,rinsing,coolong and
filtrating.
6. Appropricate lubrication must be choosen when mechanical seal is installed.The installment size of the mechanical
seal must be guaranteed to the installment instruction.
7. Before the machine starts running,the hermetic compartment shall be full of medium and well lubricated.Dry friction
which may lead to the damage of the air-tightness is strict forbidden.
