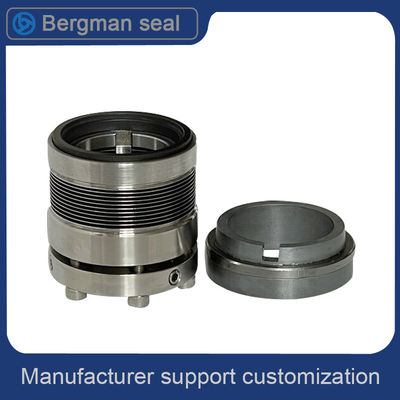

Metal Bellow Cartridge Mechanical Seal 16mm 100mm Burgmann MFLWT80

Place of Origin Guangzhou, China
Brand Name Bogeman
Certification ISO SGS
Model Number MFL WT80-16mm-100mm
Minimum Order Quantity 1/PCS
Price US $ 88-888/PCS
Packaging Details Carton
Delivery Time 20/day
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 800/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model MFLWT80 Speciflcation Shaft Hole 16-100mm
Material CAR SSIC TC PTFE Usage Unbalanced
Traemark Bergman Origin Guangzhou, China
High Light

22mm Cartridge Mechanical Seal

,

100mm Cartridge Mechanical Seal

,

100mm Metal Bellow Mechanical Seal

Leave a Message
Product Description



Metal Bellow Cartridge Mechanical Seal 16mm 100mm Burgmann MFLWT80



Burgmann MFLWT80 Replacement Mechanical Seal Metal Bellow Mechanical Seal Menggantikan



Basic Info.

Model NO.

MFLWT80

Shipment Terms

Fob Shanghai/Ningbo

Service Branches

USA, Australia, Shanghai, Wenzhou, Canton

Trademark

Bergman, Nuetral or customised

Specification

16mm~100mm

Origin

Made in China

HS Code

84842000



1. Structure Description:
Equivalent to Burgmann MFLWT80
Welded metal bellows design with totque transmission



2. Operating Limits:

Temperature:-20---400℃
Speed: 20m/s
Presure: 25bar
Standard size: 16-100mm



3. Material:

Seal ring: Car,Sic,Ssic,TC
Secondary seal: Carbon graphite
Spring and Metal parts:304,316,AM350,HAST.C,Inconel 718,Titanium





Metal Bellow Cartridge Mechanical Seal 16mm 100mm Burgmann MFLWT80 0

SS-MFLWT80 Dimensions(mm)

d

D3

D6

D7

L3

L8

L4

16

38.0

29.0

35.0

46.5

19.5

11.5

18

40.0

31.0

37.0

46.5

19.5

11.5

20

42.0

34.0

40.0

46.5

19.5

11.5

22

44.0

37.0

43.0

46.5

19.5

11.5

24

46.0

37.0

43.0

46.5

19.5

11.5

25

47.0

39.0

45.0

46.5

19.5

11.5

28

50.0

42.0

48.0

46.5

19.5

11.5

30

52.0

44.0

50.0

46.5

19.5

11.5

32

54.0

49.0

56.0

46.5

22.0

14.0

33

55.0

49.0

56.0

46.5

22.0

14.0

35

57.0

51.0

58.0

46.5

22.0

14.0

38

60.0

54.0

61.0

46.5

22.0

14.0

40

66.0

56.0

63.0

47.5

22.0

14.0

43

69.0

59.0

66.0

47.5

22.0

14.0

45

71.0

62.0

70.0

47.5

23.0

15.0

48

74.0

65.0

73.0

47.5

23.0

15.0

50

76.0

67.0

75.0

47.5

23.0

15.0

53

79.0

70.0

78.0

47.5

23.0

15.0

55

81.0

72.0

80.0

47.5

23.0

15.0

58

85.0

75.0

83.0

53.0

23.0

15.0

60

87.0

77.0

85.0

53.0

23.0

15.0

63

90.0

81.0

90.0

53.0

26.0

18.0

65

92.0

83.0

92.0

53.0

26.0

18.0

68

95.0

88.0

97.0

53.0

26.0

18.0

70

97.0

88.0

97.0

53.0

26.0

18.0

75

102.0

95.0

105.0

52.8

26.2

18.2

80

107.0

100.0

110.0

52.8

26.2

18.2

85

112.0

105.0

115.0

52.8

26.2

18.2

90

117.0

110.0

120.0

53.8

25.2

17.2

95

122.0

115.0

125.0

53.8

25.2

17.2

100

127.0

122.2

134.3

54.0

30.0

20.0



Metal Bellow Cartridge Mechanical Seal 16mm 100mm Burgmann MFLWT80 1Metal Bellow Cartridge Mechanical Seal 16mm 100mm Burgmann MFLWT80 2



We are a manufacturer. All seals have bulk inventory and can be shipped to you quickly. We promise to ship you in small quantities within 3 days.Advanced technology, excellence, replace original



1. Different models of mechanicals seals for a wide variety of Grundfos® pumps, among them: CR(N), NB, NK, CLM, LP, TP, etc. Available in diverse combinations of materials and different diameters: 12, 16, 22, 28, 33, etc. Also mechanical seals for Sarlin®. Division of waster pumps. Available in various materials: silicon-graphite carbide, silicon carbide-silicon carbide; combined with EPDM and FKM elastomers.

2. Mechanical seals for Fristam® pumps. Wide range of models and materials in the most standard diameters: 22,30 and 35 mm. Different assembly possibilities for the most well-known pump models: FP, FL and FT.

3. Broad range of mechanical seals compatible with Flygt® and Grindex® waste water pumps. These mechanical seals are characterized by their easy and fast installation, without having to make any modification to the pump. Manufactured in stainless steel and in solid tungsten carbide. Special tools are not necessary for their installation.

4. Mechanical seals for EMU® pumps. They get two static faces and one rotating face. We can supply the complete seal or spare faces.

5. Different designs of mechanical seals for Ebara® pumps, single and double seals in combinations carbide-silicon carbide and graphite-aluminium oxide.

6. Mechanical seals for all types of Calpeda® pumps: centrifugal pumps, multistage, submersible. Different models of mechanical seals in a wide range of materials.

7. Mechanical seals compatible for APV® pumps, among them: Puma, ZMA, ZMB, ZMD, ZMS, ZMH, ZMK. Rosista® and Pasilac®, W and W+. Some designs with wave spring like the special seals for APV Howard® pumps and Crepaco Clean Line®. All of them have been manufactured in materials suitable for working with fluids such as juices, milk and drinks in general.

8. Allweiler, Simple design of mechanical seals simple but with special measures for this type of pump.

9. Different models of mechanical seals compatible for Alfa-Laval® pumps series CM, FM, MR, LKH,GM and ALC. Also the models for the range of lobular SSP and SR pumps. Mechanical seals in different combination of materials tungsten carbide, silicon carbide, graphite; combined with different types of elastomers: NBR, EPDM and FKM.

Metal Bellow Cartridge Mechanical Seal 16mm 100mm Burgmann MFLWT80 3Metal Bellow Cartridge Mechanical Seal 16mm 100mm Burgmann MFLWT80 4



Fixing and Applying Directions of Mechanical Seals


1. Select Appropriate mechanical seal to match the materials according to work conditions and host machine equipment.
2. The seal cover (or shaft cover) of the stationary ring of the installed mechanical seals,the vertical degree of the seal
face should be 0.04mm by maximum.
3. When installing the mechanical seals,the shaft(shaft sleeve),seal chamber,seal face as well as the mechanical seal
must be cleaned in order to keep from any medium to sealing part.
4. When conveying medium of over high or low temperature,with medium which are easy catch fire,easy for explosion.
Related mechanical seal standards must be referred to take appropriate measures such as quench,rinsing,coolong and
filtrating.
5. Before the machine starts running,the hermetic compartment shall be full of medium and well lubricated.Dry friction
which may lead to the damage of the air-tightness is strict forbidden.
