22mm 103B Food Sanitary Pump Mechanical Seal DIN24960 Standard
| Place of Origin | Guangzhou, China |
|---|---|
| Brand Name | Bogeman |
| Certification | ISO SGS |
| Model Number | 103B 103E |
| Minimum Order Quantity | 1/PCS |
| Price | US $ 5.8-39.8/PCS |
| Packaging Details | Carton |
| Delivery Time | 2/day |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 3000/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | 103B | Speciflcation | Shaft Hole 20-50mm |
|---|---|---|---|
| Material | CAR SSIC TC EPDM | Usage | Unbalanced |
| Traemark | Bergman | Origin | Guangzhou, China |
| High Light | 22mm Pump Mechanical Seal,SGS Pump Mechanical Seal,22mm tungsten carbide seal |
||
Product Description

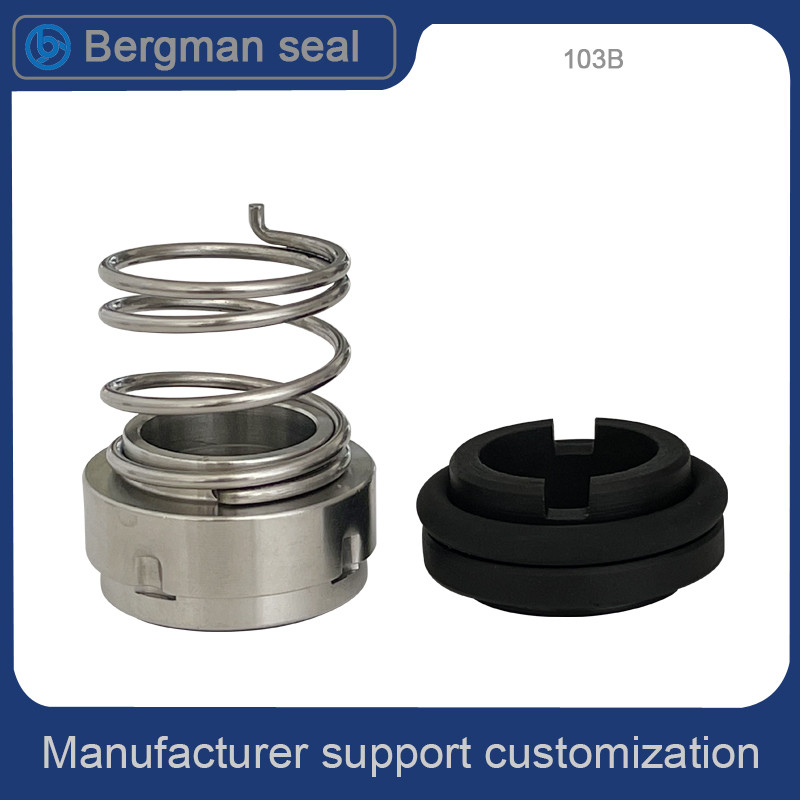

22mm 103B Food Sanitary Pump Mechanical Seal DIN24960 Standard
Mechanical Seal Type 103B-20 22 25mm Food Sanitary Pump Mechanical Seal
Basic Info.
Model NO.
Metal bellows seal
Manifold Pump Seal
103 Seal
Grundfos Pump Seal
Rubber Bellow Seal
Che Pump Seal
Mechanical Seal
Flygt pump seal
Pump Seal
Industrial Pump
Oil pump seal
ABS Pump Seal
Blackmer Seal
Food pump seal
CAR/SIC/TC/
Lowara Pump Seal
O-ring
Oil pump seal
SS304/316
Automotive pump seal
Skeleton oil seal
Specification
14mm and 100mm
Origin
China
HS Code
84842000
Basic Features
| Structure: Single End |
| Pressure: Medium Pressure Mechanical Seals |
| Speed: General Speed Mechanical Seal |
| Temperature: High Temperature Mechanical Seal |
| Performance: Wear |
| Standard: DIN24960, ISO3069, GB6556-94 |
| Model NO.: Type 103 |
| Balance: Unbalanced |
| Specification: Inner Diameter: 20 mm to 120 mm |
Product Detailed Description
Type 103 Mechanical Seal for Clean Water Pumps, Circulating Pumps and Vacuum Pumps
| Structural Features: single end, unbalanced, fixed direction of rotation, touched coil spring transmission. This component has a touched coil spring so you need to pay attention to the shaft rotating direction. |
| Industrial Standards: DIN24960, ISO3069, GB6556-94 |
| Scopes of Application: widely used in many types of chemical pumps and clean water pumps. |
1. Pressure:
| 0.8 MPa or lessOperation Parameters: |
| Temperature: - 20 ~ 220 ºC |
| Linear Speed: 15 m/s or less |
2. Materials:
| Rotary Ring: Carbon/SiC/TC |
| Stationary Ring: SiC/TC |
| Elastomers: NBR/EPDM//Aflas/PTFE/FFKM |
| Springs: SS304/SS316 |
| Metal Parts: 410S/SS304/SS316/SS316L |
3. Mediums: weak acid, weak alkalis, water and solvents.
We are a manufacturer. All seals have bulk inventory and can be shipped to you quickly. We promise to ship you in small quantities within 3 days.Advanced technology, excellence, replace original
| 1. Different models of mechanicals seals for a wide variety of Grundfos® pumps, among them: CR(N), NB, NK, CLM, LP, TP, etc. Available in diverse combinations of materials and different diameters: 12, 16, 22, 28, 33, etc. Also mechanical seals for Sarlin®. Division of waster pumps. Available in various materials: silicon-graphite carbide, silicon carbide-silicon carbide; combined with EPDM and FKM elastomers. | |||||||||||||
| 2. Mechanical seals are available for different references Gorman-Rupp® pumps. Special models for the transfer of clean water, sewage, oil industry, agriculture and others. GRN-38'1 |
|||||||||||||
| 3. Mechanical seals for Fristam® pumps. Wide range of models and materials in the most standard diameters: 22,30 and 35 mm. Different assembly possibilities for the most well-known pump models: FP, FL and FT. | |||||||||||||
| 4. Broad range of mechanical seals compatible with Flygt® and Grindex® waste water pumps. These mechanical seals are characterized by their easy and fast installation, without having to make any modification to the pump. Manufactured in stainless steel and in solid tungsten carbide. Special tools are not necessary for their installation. | |||||||||||||
| 5. Mechanical seals for EMU® pumps. They get two static faces and one rotating face. We can supply the complete seal or spare faces. | |||||||||||||
| 6. Different designs of mechanical seals for Ebara® pumps, single and double seals in combinations carbide-silicon carbide and graphite-aluminium oxide. | |||||||||||||
| 7. Mechanical seals for all types of Calpeda® pumps: centrifugal pumps, multistage, submersible. Different models of mechanical seals in a wide range of materials. | |||||||||||||
| 8. Mechanical seals compatible for APV® pumps, among them: Puma, ZMA, ZMB, ZMD, ZMS, ZMH, ZMK. Rosista® and Pasilac®, W and W+. Some designs with wave spring like the special seals for APV Howard® pumps and Crepaco Clean Line®. All of them have been manufactured in materials suitable for working with fluids such as juices, milk and drinks in general. | |||||||||||||
| 9. Allweiler, Simple design of mechanical seals simple but with special measures for this type of pump. | |||||||||||||
| 10. Different models of mechanical seals compatible for Alfa-Laval® pumps series CM, FM, MR, LKH,GM and ALC. Also the models for the range of lobular SSP and SR pumps. Mechanical seals in different combination of materials tungsten carbide, silicon carbide, graphite; combined with different types of elastomers: NBR, EPDM and FKM. | |||||||||||||
| 11. Mechanical seals for ABS® submergible pumps specific wastewater treatment. Different models of mechanical seal available: oil chamber mechanical seal and water mechanical seal. |
Fixing and Applying Directions of Mechanical Seals
| 1. Select Appropriate mechanical seal to match the materials according to work conditions and host machine equipment. |
| 2. The radial acting deviation for the shaft(shaft sleeve) of the installed mechanical seal shall be 0.04mm by maximum while the axial movement value of the rotor shall be no more than 0.1mm. |
| 3. The seal cover (or shaft cover) of the stationary ring of the installed mechanical seals,the vertical degree of the seal face should be 0.04mm by maximum. |
| 4. When installing the mechanical seals,the shaft(shaft sleeve),seal chamber,seal face as well as the mechanical seal face should be 0.04mm by maximum. |
| 5. When conveying medium of over high or low temperature,with medium which are easy catch fire,easy for explosion.Related mechanical seal standards must be referred to take appropriate measures such as quench,rinsing,coolong and filtrating. |
| 6. Appropricate lubrication must be choosen when mechanical seal is installed.The installment size of the mechanical seal must be guaranteed to the installment instruction. |
| 7. Before the machine starts running,the hermetic compartment shall be full of medium and well lubricated.Dry friction which may lead to the damage of the air-tightness is strict forbidden. |
Question : What is the size of the product?
Answer: Detailed dimensional information is available in each of our products
