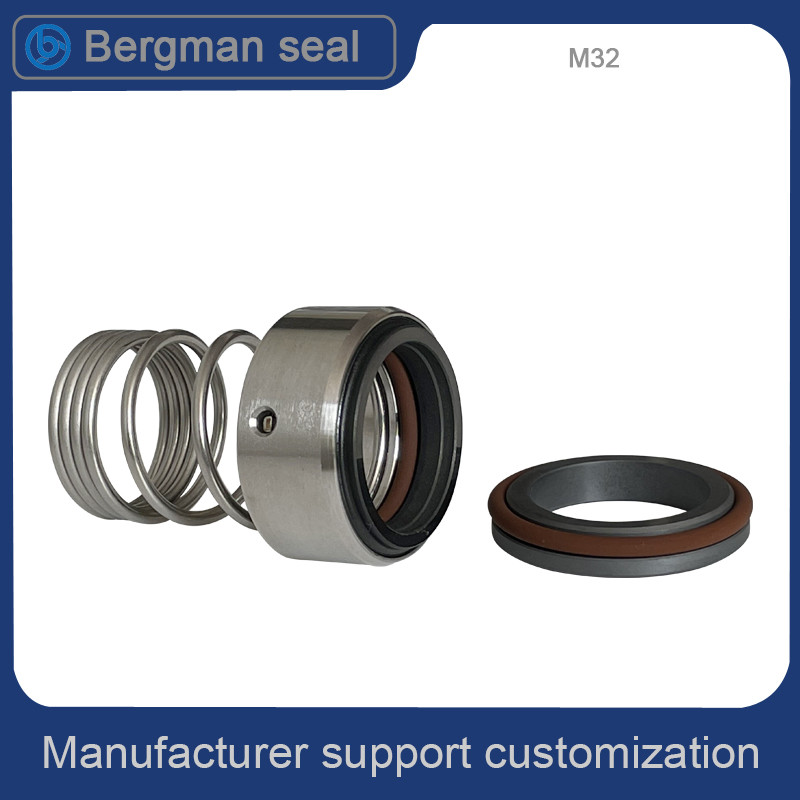

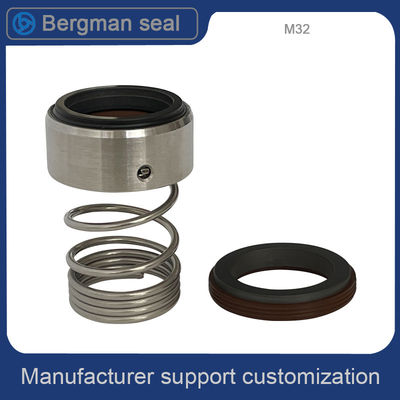

M32 M3N M37G Oil Pump Seal 25mm 80mm Southern Mechanical Seals

Place of Origin Guangzhou, China
Brand Name Bogeman
Certification ISO SGS
Model Number M32 M3N M37G G6 G60
Minimum Order Quantity 1/PCS
Price US $ 8.8-39.8/PCS
Packaging Details Carton
Delivery Time 2/day
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 3000/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model M37 M37G Speciflcation Shaft Hole 25-80mm
Material CAR SSIC TC EPDM Usage Unbalanced
Traemark Bergman Origin Guangzhou, China
High Light

25mm Oil Pump Seal

,

80mm Oil Pump Seal

,

80mm Southern Mechanical Seals

Leave a Message
Product Description

M32 M3N M37G Oil Pump Seal 25mm 80mm Southern Mechanical Seals



Mechanical Seal Borgmann M32 M3N M37G Oil Pump Seal Mechanical Seal



Basic Info.

Model NO.

Metal bellows seal

Manifold Pump Seal

M3 Seal

Grundfos Pump Seal

Rubber Bellow Seal

Che Pump Seal

Mechanical Seal

Flygt pump seal

Pump Seal

Industrial Pump

Oil pump seal

ABS Pump Seal

Blackmer Seal

Food pump seal

CAR/SIC/

Lowara Pump Seal

O-ring

Oil pump seal

SS304/316

Automotive pump seal

Skeleton oil seal

Specification

16mm and 80mm

Origin

China

HS Code

84842000



Seal size
d (mm)
d3 BT G4 G9 G6
d7 l1 l3 d7 l1 l3 d7 d8 l1 l3 d7 l1 l3
8 18 17.1 15 5.5 19.2 11.9 7 / / / / / / /
10 19 18.1 15 5.5 19.2 15.5 6.6 21 3 15.5 10 21 15.5 6.6
11 20 20.6 18 5.5 / / / / / / / / / /
12 21 20.6 18 5.5 21.6 16 5.6 23 3 16 10 23 16 6.6
13 22 23 22 6 / / / / / / / / / /
14 23 23.1 22 6 24.6 16.5 5.6 25 3 16.5 10 25 16.5 6.6
15 24 26.9 22 7 24.6 18 6.6 / / / / / / /
16 26 26.9 23 7 28 18 7.5 27 3 18 10 27 18 6.6
17 26 26.9 23 7 / / / / / / / / / /
18 29 30.9 24 8 30 19.5 8 33 3 19.5 11.5 33 19.5 7.5
19 31 30.9 25 8 35 22 7.5 / / / / / / /
20 31 30.9 25 8 35 22 7.5 35 3 22 11.5 35 22 7.5
22 33 35.4 25 8 35 21.5 7.5 37 3 21.5 11.5 37 21.5 7.5
23 36 35.4 27 8 / / / / / / / / / /
24 35 35.4 27 8 38 23.5 7.5 39 3 23.5 11.5 39 23.5 7.5
25 36 38.2 27 8.5 38 26.5 7.5 40 3 26.5 11.5 40 26.5 7.5
26 37 38.2 27 8.5 40 26.5 8 / / / / / / /
28 40 43.3 29 9 42 26.5 9 43 3 26.5 11.5 43 26.5 7.5
30 43 43.3 30 9 45 26.5 10.5 45 3 26.5 11.5 45 26.5 7.5
32 46 43.3 30 9 48 28.5 10.5 48 3 28.5 11.5 48 28.5 7.5
33 47 53.5 39 11.5 / / / / / 28.5 / / 28.5 /
34 48 53.5 39 11.5 / / / / / / / / / /
35 49 53.5 39 11.5 52 28.5 11 50 3 28.5 11.5 50 28.5 7.5
36 50 53.5 39 11.5 / / / / / / / / / /
38 53 60.5 39 11.5 55 33.5 10.3 56 4 33.5 14 56 33.5 9
40 56 60.5 39 11.5 58 36 10.8 58 4 36 14 58 36 9
42 59 60.5 39 11.5 62 38.5 12 / / / / / / /
43 59 60.5 39 11.5 62 38.5 12 61 4 38.5 14 61 38.5 9
44 60 65.5 41 11.5 / / / / / / / / / /
45 61 65.5 41 11.5 64 39.5 11.6 63 4 39.5 14 63 39.5 9
48 64 65.5 41 11.5 68.4 46 11.6 66 4 46 14 66 46 9
50 66 72.5 45 11.5 69.3 45 11.6 70 4 45 15 70 45 9.5
53 69 / / / / / / 73 4 47 15 70 47 9.5
55 71 72.5 47 11.5 75.4 49 13.3 75 4 49 15 75 49 11
58 76 / / / 78.4 55 13.3 78 4 55 15 78 55 11
60 78 79.3 49 11.5 80.4 55 13.3 80 4 55 15 80 55 11
63 83 / / / / / / 83 4 55 15 83 55 11
65 84 84.5 51 11.5 85.4 55 13 85 4 55 15 85 55 11
68 88 / / / 91.5 55 13.7 90 4 55 18 90 55 11.3
70 90 89.5 51 11.5 92 57 13 92 4 57 18 92 57 11.3
75 98 94.5 57 11.5 99 62 14 97 4 62 18 97 62 11.3
80 100 99.5 59l 11.5 104 61.8 15 105 4 61.8 18.2 105 61.8 12



We are a manufacturer. All seals have bulk inventory and can be shipped to you quickly. We promise to ship you in small quantities within 3 days.Advanced technology, excellence, replace original


M32 M3N M37G Oil Pump Seal 25mm 80mm Southern Mechanical Seals 0M32 M3N M37G Oil Pump Seal 25mm 80mm Southern Mechanical Seals 1



1. Different models of mechanicals seals for a wide variety of Grundfos® pumps, among them: CR(N), NB, NK, CLM, LP, TP, etc. Available in diverse combinations of materials and different diameters: 12, 16, 22, 28, 33, etc. Also mechanical seals for Sarlin®. Division of waster pumps. Available in various materials: silicon-graphite carbide, silicon carbide-silicon carbide; combined with EPDM and FKM elastomers.
2. Mechanical seals are available for different references Gorman-Rupp® pumps. Special models for the transfer of clean water, sewage, oil industry, agriculture and others.
GRN-38'1
3. Mechanical seals for Fristam® pumps. Wide range of models and materials in the most standard diameters: 22,30 and 35 mm. Different assembly possibilities for the most well-known pump models: FP, FL and FT.
4. Broad range of mechanical seals compatible with Flygt® and Grindex® waste water pumps. These mechanical seals are characterized by their easy and fast installation, without having to make any modification to the pump. Manufactured in stainless steel and in solid tungsten carbide. Special tools are not necessary for their installation.
5. Mechanical seals for EMU® pumps. They get two static faces and one rotating face. We can supply the complete seal or spare faces.
6. Different designs of mechanical seals for Ebara® pumps, single and double seals in combinations carbide-silicon carbide and graphite-aluminium oxide.
7. Mechanical seals for all types of Calpeda® pumps: centrifugal pumps, multistage, submersible. Different models of mechanical seals in a wide range of materials.
8. Mechanical seals compatible for APV® pumps, among them: Puma, ZMA, ZMB, ZMD, ZMS, ZMH, ZMK. Rosista® and Pasilac®, W and W+. Some designs with wave spring like the special seals for APV Howard® pumps and Crepaco Clean Line®. All of them have been manufactured in materials suitable for working with fluids such as juices, milk and drinks in general.
9. Allweiler, Simple design of mechanical seals simple but with special measures for this type of pump.
10. Different models of mechanical seals compatible for Alfa-Laval® pumps series CM, FM, MR, LKH,GM and ALC. Also the models for the range of lobular SSP and SR pumps. Mechanical seals in different combination of materials tungsten carbide, silicon carbide, graphite; combined with different types of elastomers: NBR, EPDM and FKM.
11. Mechanical seals for ABS® submergible pumps specific wastewater treatment. Different models of mechanical seal available: oil chamber mechanical seal and water mechanical seal.



M32 M3N M37G Oil Pump Seal 25mm 80mm Southern Mechanical Seals 2M32 M3N M37G Oil Pump Seal 25mm 80mm Southern Mechanical Seals 3



Fixing and Applying Directions of Mechanical Seals


1. Select Appropriate mechanical seal to match the materials according to work conditions and host machine equipment.
2. The seal cover (or shaft cover) of the stationary ring of the installed mechanical seals,the vertical degree of the seal
face should be 0.04mm by maximum.
3. When installing the mechanical seals,the shaft(shaft sleeve),seal chamber,seal face as well as the mechanical seal
must be cleaned in order to keep from any medium to sealing part.
4. Appropricate lubrication must be choosen when mechanical seal is installed.The installment size of the mechanical
seal must be guaranteed to the installment instruction.
5. Before the machine starts running,the hermetic compartment shall be full of medium and well lubricated.Dry friction
which may lead to the damage of the air-tightness is strict forbidden.





Question : Where is your factory located? How can I visit there?

Answer: Our factory is located in Guangzhou, China. You can fly to Guangzhou airport directly. All our clients, from home or abroad, are warmly welcome to visit us!

Question  : What is the size of the product?

Answer: Detailed dimensional information is available in each of our products
