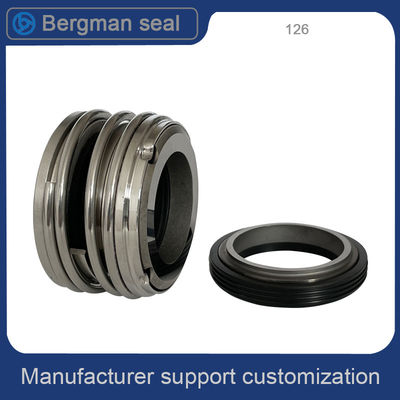

Elastomer Bellows 126 60mm Mechanical Water Seal For Paper Industry
| Place of Origin | Guangzhou, China |
|---|---|
| Brand Name | Bogeman |
| Certification | ISO SGS |
| Model Number | YM126-20/25/30/35/40/45/50/55/60 |
| Minimum Order Quantity | 1/PCS |
| Price | US $ 18.8-58.8/PCS |
| Packaging Details | Carton |
| Delivery Time | 2/day |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1000/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | BGM 126 | Speciflcation | Shaft Hole 20-80mm |
|---|---|---|---|
| Material | CAR TC TC NBR | Usage | Unbalanced |
| Traemark | Bergman | Origin | Guangzhou, China |
| High Light | 60mm Mechanical Water Seal,20mm Mechanical Water Seal,60mm elastomer bellow seal |
||
Product Description
Elastomer Bellows 126 60mm Mechanical Water Seal For Paper Industry
Elastomer Bellows 126-25 30 35 40 45 50 55 60mm Series Mechanical Seal
Model NO.
BGM126
Balance
Unbalanced
Usage
Wide
Trademark
Bergman
Transport Package
Carton or Plywood Box
Specification
SGS
Origin
Shanghai China
HS Code
84842000
BGM126 SERIES MECHANICAL SEAL
1. Applicable Range:
|
Pressure in the seal chamber: 0-1.2MPa |
|
Temperature in the seal chamber: -20ºC------180ºC |
|
Linear Velocity: ≤ 10m/s |
|
Medium: water,polluted water,oil and minor corrosive liquid |
|
Static ring code: 108 |
2. Features:
|
For plain shafts |
|
More reliable transimission |
|
High flexibility due to wide offer on materials |
|
Dimension adaptions and additional seats available |
|
Promise of all material quality is good as CE certified |
3. Material Combination:
|
Rotating face: silicon carbide,graphite,tungsten carbide. |
|
Stationary face: silicon carbide, tungsten carbide |
|
Elastomers: NBR,EPDM,FKM |
|
Seat metal: SS304,316 |
4. Application:
|
Process industry |
|
Chemical industry |
|
Pulp and paper industry |
|
Water and waste water technology |
|
Sugar industry |
Model & Specification:
|
型号(mm) |
d |
d1 |
D |
D1 |
升 |
L1 |
L2 |
L3 |
L4 |
L5 |
|
BGM 126-30 |
30 |
52 |
45 |
39 |
50 |
45 |
19 |
5 |
7.5 |
31 |
|
BGM 126-35 |
35 |
57 |
50 |
44 |
53 |
47 |
20 |
5 |
7.5 |
33 |
|
BGM 126-40 |
40 |
64 |
58 |
51 |
57 |
50 |
20 |
5 |
9 |
37 |
|
BGM 126-45 |
45 |
72 |
63 |
56 |
62 |
55 |
20 |
5 |
9 |
42 |
|
BGM 126-50 |
50 |
76 |
70 |
62 |
62 |
54 |
21 |
6 |
9.5 |
41 |
|
BGM 126-55 |
55 |
82 |
75 |
67 |
64 |
55 |
22 |
6 |
11 |
42 |
|
BGM 126-60 |
60 |
86 |
80 |
72 |
65 |
58 |
22 |
6 |
11.5 |
43 |
|
BGM 126-65 |
65 |
92 |
85 |
77 |
67 |
61 |
22 |
6 |
11.5 |
45 |
|
BGM 126-70 |
70 |
100 |
92 |
83 |
70 |
62 |
25 |
6 |
11.5 |
45 |
|
BGM 126-75 |
75 |
105 |
97 |
88 |
72 |
64 |
25 |
6 |
11.5 |
47 |
|
BGM 126-80 |
80 |
115 |
105 |
95 |
72 |
65 |
25 |
6 |
12 |
47 |
We are a manufacturer. All seals have bulk inventory and can be shipped to you quickly. We promise to ship you in small quantities within 3 days.Advanced technology, excellence, replace original
1. Different models of mechanicals seals for a wide variety of Grundfos® pumps, among them: CR(N), NB, NK, CLM, LP, TP, etc. Available in diverse combinations of materials and different diameters: 12, 16, 22, 28, 33, etc. Also mechanical seals for Sarlin®. Division of waster pumps. Available in various materials: silicon-graphite carbide, silicon carbide-silicon carbide; combined with EPDM and FKM elastomers.
2. Mechanical seals are available for different references Gorman-Rupp® pumps. Special models for the transfer of clean water, sewage, oil industry, agriculture and others.
GRN-38'1
3. Mechanical seals for Fristam® pumps. Wide range of models and materials in the most standard diameters: 22,30 and 35 mm. Different assembly possibilities for the most well-known pump models: FP, FL and FT.
4. Broad range of mechanical seals compatible with Flygt® and Grindex® waste water pumps. These mechanical seals are characterized by their easy and fast installation, without having to make any modification to the pump. Manufactured in stainless steel and in solid tungsten carbide. Special tools are not necessary for their installation.
5. Mechanical seals for EMU® pumps. They get two static faces and one rotating face. We can supply the complete seal or spare faces.
6. Different designs of mechanical seals for Ebara® pumps, single and double seals in combinations carbide-silicon carbide and graphite-aluminium oxide.
7. Mechanical seals for all types of Calpeda® pumps: centrifugal pumps, multistage, submersible. Different models of mechanical seals in a wide range of materials.
8. Mechanical seals compatible for APV® pumps, among them: Puma, ZMA, ZMB, ZMD, ZMS, ZMH, ZMK. Rosista® and Pasilac®, W and W+. Some designs with wave spring like the special seals for APV Howard® pumps and Crepaco Clean Line®. All of them have been manufactured in materials suitable for working with fluids such as juices, milk and drinks in general.
9. Allweiler, Simple design of mechanical seals simple but with special measures for this type of pump.
10. Different models of mechanical seals compatible for Alfa-Laval® pumps series CM, FM, MR, LKH,GM and ALC. Also the models for the range of lobular SSP and SR pumps. Mechanical seals in different combination of materials tungsten carbide, silicon carbide, graphite; combined with different types of elastomers: NBR, EPDM and FKM.
11. Mechanical seals for ABS® submergible pumps specific wastewater treatment. Different models of mechanical seal available: oil chamber mechanical seal and water mechanical seal.
Fixing and Applying Directions of Mechanical Seals
|
1. The radial acting deviation for the shaft(shaft sleeve) of the installed mechanical seal shall be 0.04mm by maximum while the axial movement value of the rotor shall be no more than 0.1mm. |
|
2. The seal cover (or shaft cover) of the stationary ring of the installed mechanical seals,the vertical degree of the seal face should be 0.04mm by maximum. |
|
3. When installing the mechanical seals,the shaft(shaft sleeve),seal chamber,seal face as well as the mechanical seal face |
|
4. When conveying medium of over high or low temperature,with medium which are easy catch fire,easy for explosion.Related mechanical seal standards must be referred to take appropriate measures such as quench,rinsing,coolong and filtrating. |
|
5. Appropricate lubrication must be choosen when mechanical seal is installed.The installment size of the mechanical seal must be guaranteed to the installment instruction. |
|
6. Before the machine starts running,the hermetic compartment shall be full of medium and well lubricated.Dry friction which may lead to the damage of the air-tightness is strict forbidden. |
