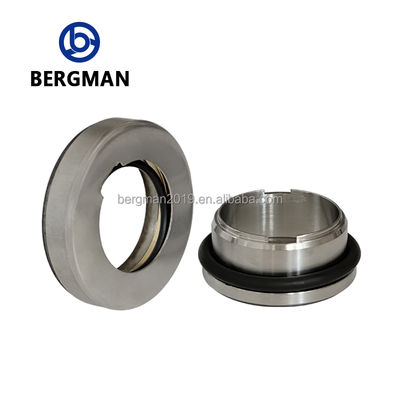

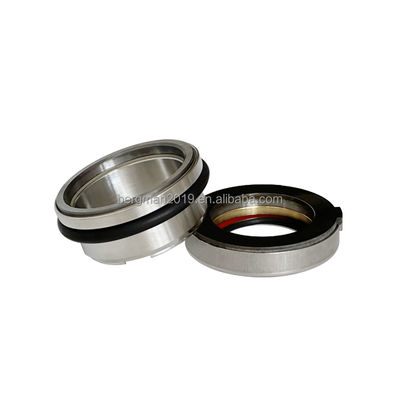

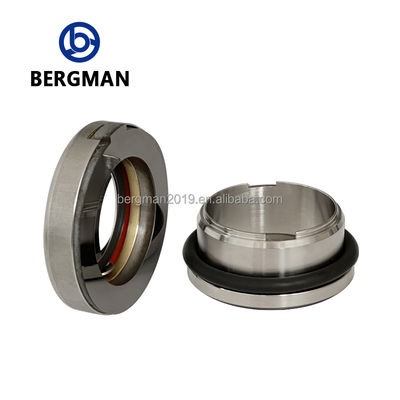

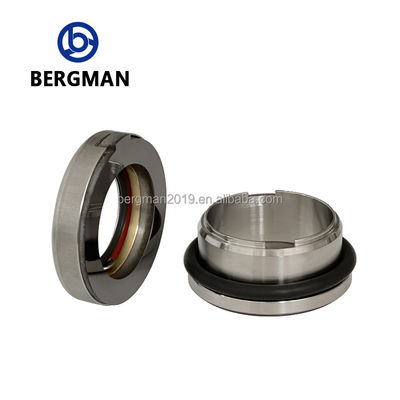

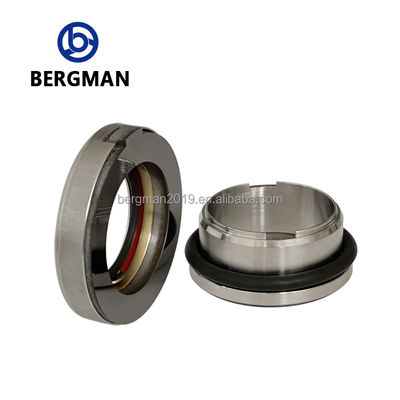

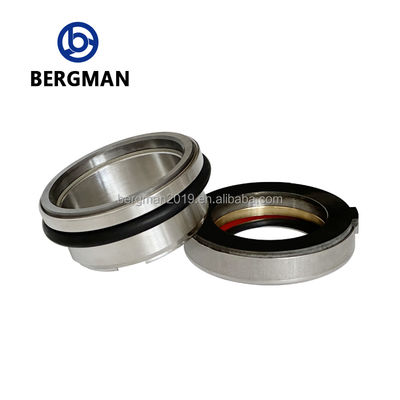

ISO9001-2015 Certified Flygt Pump Mechanical Seal with TC Face and TC Seat for Lower Seal Replacement

  • ISO9001-2015 Certified Flygt Pump Mechanical Seal with TC Face and TC Seat for Lower Seal Replacement
  • ISO9001-2015 Certified Flygt Pump Mechanical Seal with TC Face and TC Seat for Lower Seal Replacement
  • ISO9001-2015 Certified Flygt Pump Mechanical Seal with TC Face and TC Seat for Lower Seal Replacement
  • ISO9001-2015 Certified Flygt Pump Mechanical Seal with TC Face and TC Seat for Lower Seal Replacement
  • ISO9001-2015 Certified Flygt Pump Mechanical Seal with TC Face and TC Seat for Lower Seal Replacement
  • ISO9001-2015 Certified Flygt Pump Mechanical Seal with TC Face and TC Seat for Lower Seal Replacement
Place of Origin Guangzhou,China
Brand Name BERGMAN, BERGMAN
Model Number FOL-45mm
Minimum Order Quantity 1
Price $50-80

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size 45mm Face Material Tungsten Carbide TC
Seat Material Tungsten Carbide TC Elastomer Material VITON FPM
Metal Parts SS316 Hastelloy C AM350 Max Pressure ≤ 1.5mpa
Line Speed ≤ 15m/s Temperature Range -20°C-180°C
Model FS-O-L45mm HTS Code 8484.20.00
Compatible Models Flygt 2201, 3140, 3151, 3152, 5033, 5100, 5540 Secondary Seal VITON FPM
Quantity 1set Standards Compliance DIN24960, ISO3069, EN12576, API682
Material Options Tungsten Carbide, Silicon Carbide, Carbon Graphite, Alumina
Highlight

ISO9001-2015 Certified Flygt Pump Mechanical Seal

,

TC Face Flygt Pump Mechanical Seal

,

TC Seat Flygt Pump Mechanical Seal
Leave a Message
Product Description
Replace Flygt FOL-45mm 2201 3140 3151 3152 5033 5100 5540 Pump Mechanical Seal Lower Seal
Product Overview
Guangzhou Bergman Mechanical Seals Co., Ltd. specializes in high-quality mechanical seals for industrial pumps.
Product Name Mechanical Seal Size Standard size (20mm-90mm)
Brand BERGMAN Model FS-O-L45mm
Pressure ≤ 1.5mpa Line Speed ≤ 15m/s
Temperature -20°C-180°C (Depends on O-ring material) Application Flygt pump
Face Material Tungsten carbide TC Seat Material Tungsten carbide TC
Secondary Seal VITON FPM Metal Parts SS316 Hastelloy C AM350
Certificate ISO9001-2015 Service OEM customization service
Compatible Flygt Pump Models
1335.181, 2024, 2056, 2102.220, 2050, 2052, 2060, 2066, 2070, 2071, 2075, 2082, 2084, 2090, 2095, 2101, 2012, 2102, 2125, 2135, 2140, 2151, 2201, 2250, 2400, 2610, 2620, 2630, 2660, 2670, 2730, 2740, 3041, 3045, 3050, 3057, 3060, 3065, 3066, 3067, 3068, 3069, 3080, 3082, 3085, 3101, 3102, 3126, 3127, 3140, 3151, 3152, 3153, 3170, 3171, 3200, 3202, 3230, 3231, 3300, 3301, 3306, 3310, 3311, 3350, 3351, 3356, 3400, 3501, 3530, and full range of Flygt pump mechanical seals.
Product Features
  • Complies with DIN24960, ISO3069, EN12576, API682 standards
  • Can replace original seals with cost-effective alternatives
  • 2,000+ square meters warehouse with large inventory
  • Factory-direct pricing with excellent quality
  • Fast delivery and reliable after-sales service
  • Full range of Flygt pump mechanical seals available
  • OEM and customized services supported
Material Specifications
Wear-resistant materials including tungsten carbide, silicon carbide, carbon graphite, alumina, rubber seals, PTFE seals, O-rings, etc.
ISO9001-2015 Certified Flygt Pump Mechanical Seal with TC Face and TC Seat for Lower Seal Replacement 0 ISO9001-2015 Certified Flygt Pump Mechanical Seal with TC Face and TC Seat for Lower Seal Replacement 1 ISO9001-2015 Certified Flygt Pump Mechanical Seal with TC Face and TC Seat for Lower Seal Replacement 2
Company Profile
Guangzhou Bogman Mechanical Seals Co., Ltd. (formerly Guangzhou Yongfa Mechanical Seals Co., Ltd.) was established in 1996. After more than 20 years of development, the company has passed GB/T19001-2016 idt ISO9001:2015 certification. We specialize in various mechanical seals including pump mechanical seals, axe mechanical seals, fluid mechanical seals, metal bellows mechanical seals, and more. Our materials include cemented carbide, silicon carbide, carbon graphite, and alumina.
ISO9001-2015 Certified Flygt Pump Mechanical Seal with TC Face and TC Seat for Lower Seal Replacement 3
Facilities
  • 2,000+ square meters warehouse with spot inventory
  • Modern machine tool equipment and dust-free workshop
  • Inspection equipment and assembly line operation
  • Regular participation in Guangzhou Spring Import and Export Fair
ISO9001-2015 Certified Flygt Pump Mechanical Seal with TC Face and TC Seat for Lower Seal Replacement 4 ISO9001-2015 Certified Flygt Pump Mechanical Seal with TC Face and TC Seat for Lower Seal Replacement 5
Application Range
Widely used in pipeline pumps, centrifugal pumps, sewage pumps, chemical pumps for petroleum, chemical, aerospace, pharmaceutical, food, and agricultural irrigation industries.
Packaging & Shipping
Various packaging options available with customized packaging for large orders. Fast shipping via air, sea, or express.
ISO9001-2015 Certified Flygt Pump Mechanical Seal with TC Face and TC Seat for Lower Seal Replacement 6
Frequently Asked Questions
Q: Are you a factory or a trader?
A: We are a production factory with our own international trade department.
Q: Where is your factory located?
A: Our factory is located in Guangzhou City, near Guangzhou Port and Shenzhen Port.
Q: How many days is your delivery time?
A: Stock items ship immediately after payment. Custom items require 10-25 days production time.
Q: Do you provide free samples?
A: Samples are not free, but sample cost can be refunded after order placement.
Q: What is your payment terms?
A: Stock items: 100% prepayment. Custom items: 30% deposit, 70% before shipment. We accept T/T, BABY, Western Union, and Alibaba payment.
Contact Information
International Trade:
Li Wei: Mobile +86-15622176299
Yang Yingjie: WeChat/WhatsApp +86-15627223988
Yang Aijun: WeChat/WhatsApp +86-13602719849
Email: bergman168@outlook.com
