ISO9001-2015 Certified 80mm Flygt Pump Mechanical Seal with TC Face and TC Seat for Lower Seal Replacement
| Place of Origin | Guangzhou,China |
|---|---|
| Brand Name | BERGMAN, BERGMAN |
| Model Number | FSL-80mm |
| Minimum Order Quantity | 1 |
| Price | $300-500 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 80mm | Face Material | Tungsten Carbide TC |
|---|---|---|---|
| Seat Material | Tungsten Carbide TC | Elastomer Material | VITON FPM |
| Metal Parts | SS316 Hastelloy C AM350 | Max Pressure | ≤ 1.5mpa |
| Max Line Speed | ≤ 15m/s | Temperature Range | -20°C-180°C |
| Model | FS-S-L80mm | HTS Code | 8484.20.00 |
| Standard Sizes | 20mm, 25mm, 35mm, 45mm, 60mm, 75mm, 80mm, 90mm | Secondary Seal | VITON FPM |
| Compatible Models | Flygt 3230, 3300, 3305, 3306, 3355, 3356, 3357 | Compliance Standards | DIN24960, ISO3069, EN12576, API682 |
| Material Options | Tungsten Carbide, Silicon Carbide, Carbon Graphite, Alumina | ||
| Highlight | ISO9001-2015 Certified Mechanical Seal,TC Face Pump Seal,TC Seat Flygt Seal |
||
Product Description
Replace Flygt FSL-80mm 3230 3300 3305 3306 3355 3356 3357 Pump Mechanical Seal Lower Seal
Product Overview
Guangzhou Bergman Mechanical Seals Co., Ltd. specializes in high-quality mechanical seals for Flygt pumps, offering OEM customization services with premium materials and international certifications.
Technical Specifications
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Name | Mechanical Seal | Country of Origin | Guangzhou, China |
| Size | Standard size (20mm-90mm) | Brand | BERGMAN |
| Model | FS-S-L80mm | MOQ | 1 set |
| Pressure | ≤ 1.5MPa | Line Speed | ≤ 15m/s |
| Temperature | -20°C to 180°C (depends on O-ring material) | Application | Flygt pump |
| Face Material | Tungsten carbide (TC) | Seat Material | Tungsten carbide (TC) |
| Secondary Seal | VITON FPM | Metal Parts | SS316, Hastelloy C, AM350 |
| Certificate | ISO9001-2015 | Service | OEM customization |
Compatible Flygt Pump Models
This mechanical seal is compatible with a wide range of Flygt pump models including:
- 1335.181, 2024, 2056, 2102.220, 2050, 2052, 2060, 2066, 2070, 2071
- 2075, 2082, 2084, 2090, 2095, 2101, 2012, 2102, 2125, 2135, 2140
- 2151, 2201, 2250, 2400, 2610, 2620, 2630, 2660, 2670, 2730, 2740
- 3041, 3045, 3050, 3057, 3060, 3065, 3066, 3067, 3068, 3069, 3080
- 3082, 3085, 3101, 3102, 3126, 3127, 3140, 3151, 3152, 3153, 3170
- 3171, 3200, 3202, 3230, 3231, 3300, 3301, 3306, 3310, 3311, 3350
- 3351, 3356, 3400, 3501, 3530
Key Features
- Complies with DIN24960, ISO3069, EN12576, API682 standards
- Direct replacement for original Flygt pump seals
- Available in different price points to match customer budgets
- 2,000+ square meter warehouse with large inventory for fast delivery
- Can replace Burgman, John Crane, AES and other major brands
- Full range of Flygt pump mechanical seals available
- Premium materials including tungsten carbide, silicon carbide, carbon graphite
- Custom OEM services available

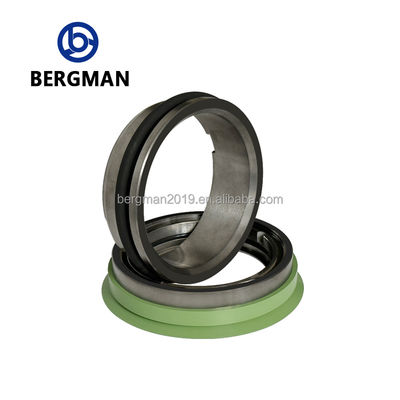

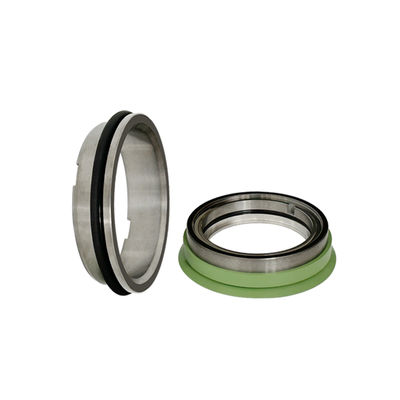

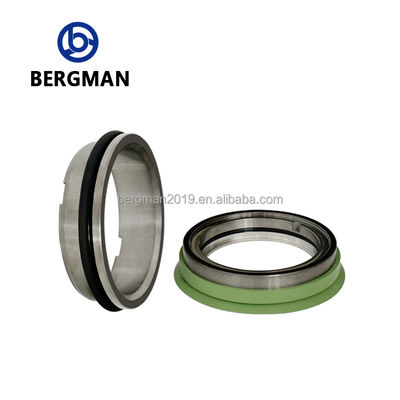

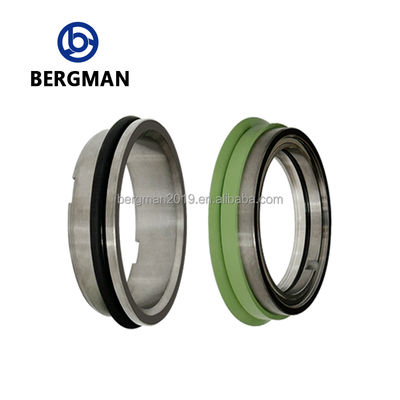

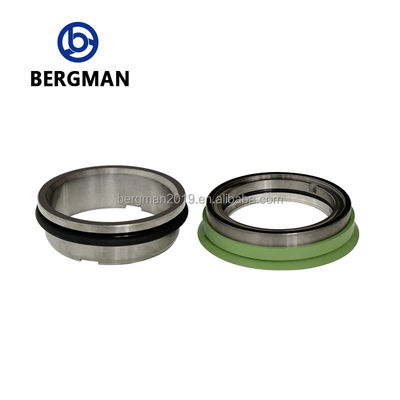

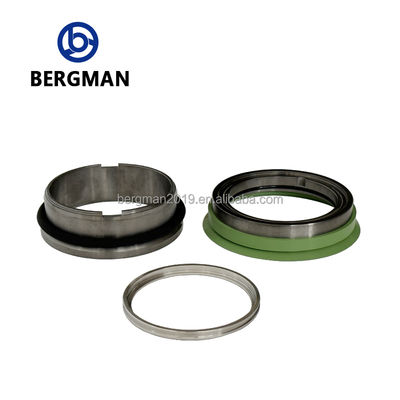

Product Images
Company Profile
Guangzhou Bogman Mechanical Seals Co., Ltd. (formerly Guangzhou Yongfa Mechanical Seals Co., Ltd.) has been in operation since 1996. With over 20 years of development, we established Guangzhou Bogman Mechanical Seals Co., Ltd. in 2019 and Guangdong Bogman Seals Co., Ltd. in 2023. Our company has passed the GB/T19001-2016 idt ISO9001:2015 quality management system certification.
We specialize in:
- Pump mechanical seals
- Axe mechanical seals
- Fluid mechanical seals
- Metal bellows mechanical seals
- Various sealing materials including cemented carbide, silicon carbide, carbon graphite, and alumina
Located in Guangzhou with convenient access to major ports including Guangzhou Port, Shenzhen Port, and Foshan Port for efficient logistics. Our 2,000+ square meter warehouse enables fast delivery.
Production Capabilities
- Modern advanced machine tool equipment
- Dust-free workshop
- Comprehensive inspection equipment
- Assembly line operation
Application Range
Our mechanical seals are widely used in:
- Pipeline pumps
- Centrifugal pumps
- Sewage pumps
- Chemical pumps
Applications include petroleum, chemical industry, aerospace, pharmaceutical, food, and agricultural irrigation fields.
Frequently Asked Questions
Q: Are you a factory or a trader?
A: We are a production factory with our own international trade department.
Q: Where is your factory located?
A: Our factory is located in Guangzhou City, near Guangzhou Port and Shenzhen Port. Other ports can be selected based on customer needs.
Q: How many days is your delivery time?
A: For stock products, we ship immediately after payment. For custom items, production takes 10-25 days depending on order quantity and type.
Q: Do you provide free samples?
A: We typically don't provide free samples, but sample costs can be refunded after order placement.
