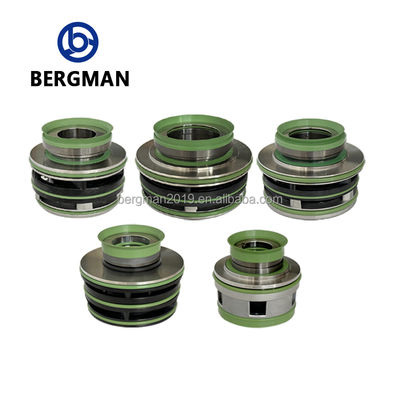

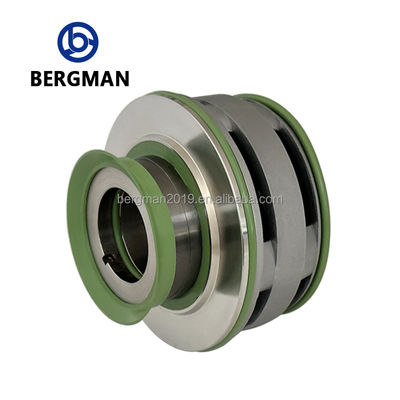

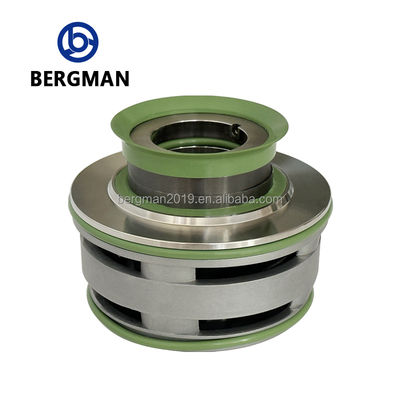

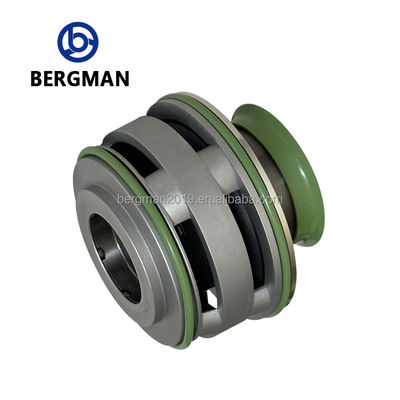

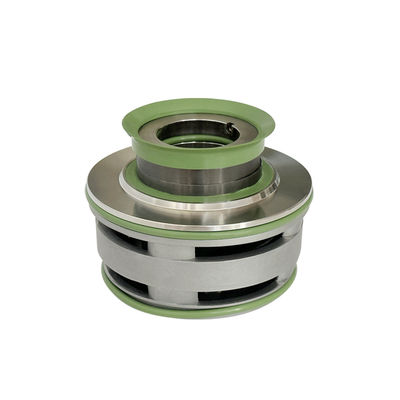

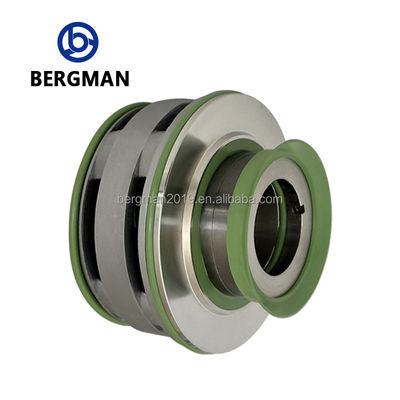

35mm Flygt Mechanical Seal with TC Face and TC Seat for Flygt Pump ISO9001-2015 Certified

  • 35mm Flygt Mechanical Seal with TC Face and TC Seat for Flygt Pump ISO9001-2015 Certified
  • 35mm Flygt Mechanical Seal with TC Face and TC Seat for Flygt Pump ISO9001-2015 Certified
  • 35mm Flygt Mechanical Seal with TC Face and TC Seat for Flygt Pump ISO9001-2015 Certified
  • 35mm Flygt Mechanical Seal with TC Face and TC Seat for Flygt Pump ISO9001-2015 Certified
  • 35mm Flygt Mechanical Seal with TC Face and TC Seat for Flygt Pump ISO9001-2015 Certified
  • 35mm Flygt Mechanical Seal with TC Face and TC Seat for Flygt Pump ISO9001-2015 Certified
Place of Origin Guangzhou,China
Brand Name BERGMAN, BERGMAN
Model Number FS-35
Minimum Order Quantity 1
Price $200-280

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size 35mm Face Material Tungsten Carbide TC
Seat Material Tungsten Carbide TC Elastomer Material VITON FPM
Metal Parts SS316 Hastelloy C AM350 Max Pressure ≤ 1.5mpa
Line Speed ≤ 15m/s Temperature Range -20°C-180°C
Model FGL-FS HTS Code 8484.20.00
Standard Sizes 20mm, 25mm, 35mm, 45mm, 60mm, 90mm Secondary Seal VITON FPM
Compliance Standards DIN24960, ISO3069, EN12576, API682 Max Line Speed 15m/s
O-ring Material Varies
Highlight

ISO9001-2015 Certified Flygt Mechanical Seal

,

TC Face Cartridge Mechanical Seal

,

TC Seat Metal Frame Mechanical Seal
Leave a Message
Product Description
Replace Flygt Pump FS-35mm 3153 8204 2660 2670 Metal Frame Cartridge Mechanical Seal
Product Overview
Guangzhou Bergman Mechanical Seals Co., Ltd. specializes in high-quality mechanical seals for industrial applications.
Specification Details
Product Name Mechanical Seal
Size Standard sizes: 20mm, 25mm, 35mm, 45mm, 60mm, 90mm
Brand BERGMAN
Model FGL-FS
Pressure ≤ 1.5mpa
Temperature -20°C-180°C (Depends on O-ring material)
Face Material Tungsten carbide TC
Seat Material Tungsten carbide TC
Secondary Seal VITON FPM
Metal Parts SS316 Hastelloy C AM350
Certificate ISO9001-2015
Compatible Flygt Pump Models
2610, 2620, 2630, 2640, 4610, 4620, 2660, 2670, 4630, 4640, 3153, 5100.211, 5100.220, 2100.211, 3171, 3152, 4650, 4660, 5100.250, 5100.251, 5100.260, 5100.261, 3202, 4670, 4680, 5100.300, 5100.310, 5151.300, 5151.310, 3301, 5150.350, 5150-360
Key Features
  • Complies with DIN24960, ISO3069, EN12576, API682 standards
  • Can replace original seals with cost-effective alternatives
  • 2000+ square meters warehouse with large inventory for fast delivery
  • Can replace Burgman, John Crane, AES and other renowned brand seals
  • OEM and customized services available
  • Factory-direct pricing with excellent after-sales service
Material Advantages
Wear-resistant materials including tungsten carbide, silicon carbide, carbon graphite, alumina, rubber seals, PTFE seals, and O-rings.
35mm Flygt Mechanical Seal with TC Face and TC Seat for Flygt Pump ISO9001-2015 Certified 0 35mm Flygt Mechanical Seal with TC Face and TC Seat for Flygt Pump ISO9001-2015 Certified 1
Company Profile
Guangzhou Bogman Mechanical Seals Co., Ltd. (formerly Guangzhou Yongfa Mechanical Seals Co., Ltd.) was established in 1996. With over 20 years of development, we have grown into a leading manufacturer with ISO9001:2015 certification. Our product range includes various mechanical seals for pumps, fluid systems, and industrial applications, using premium materials like cemented carbide, silicon carbide, and carbon graphite.
35mm Flygt Mechanical Seal with TC Face and TC Seat for Flygt Pump ISO9001-2015 Certified 2
Production Capabilities
  • 2000+ square meters warehouse with large inventory
  • Modern machine tools and dust-free workshop
  • Advanced inspection equipment and assembly line operation
  • Regular participation in Guangzhou Spring Import and Export Fair
35mm Flygt Mechanical Seal with TC Face and TC Seat for Flygt Pump ISO9001-2015 Certified 3 35mm Flygt Mechanical Seal with TC Face and TC Seat for Flygt Pump ISO9001-2015 Certified 4
Application Range
Widely used in pipeline pumps, centrifugal pumps, sewage pumps, chemical pumps for petroleum, chemical, aerospace, pharmaceutical, food, and agricultural irrigation industries.
Packaging & Shipping
Various packaging options available with customized packaging for large orders. Efficient shipping via air, sea, or express.
35mm Flygt Mechanical Seal with TC Face and TC Seat for Flygt Pump ISO9001-2015 Certified 5
Frequently Asked Questions
Q: Are you a factory or a trader?
A: We are a production factory with our own international trade department.
Q: Where is your factory located?
A: Our factory is located in Guangzhou City, near Guangzhou Port and Shenzhen Port.
Q: How many days is your delivery time?
A: Stock items ship immediately after payment. Custom items require 10-25 days for production.
Q: Do you provide free samples?
A: Samples are not free, but sample costs can be refunded after order placement.
Q: What are your payment terms?
A: Stock items: 100% prepayment. Custom items: 30% deposit, 70% before shipment. We accept T/T, BABY, Western Union, and Alibaba payments.
Contact Information
International Trade
Li Wei: Mobile +86-15622176299
Yang Yingjie: WeChat/WhatsApp +86-15627223988
Yang Aijun: WeChat/WhatsApp +86-13602719849
Email: bergman168@outlook.com
