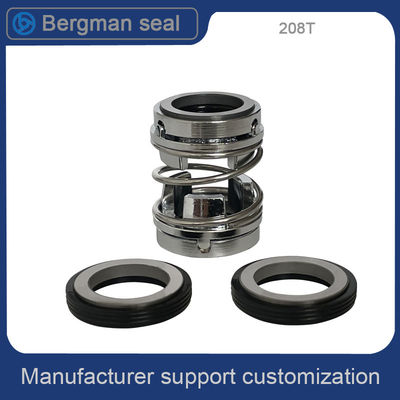

40mm 208t Water Pump Singe Spring Mechanical Seal Sgs Shaft Hole
| Place of Origin | Guangzhou, China |
|---|---|
| Brand Name | Bogeman |
| Certification | ISO SGS |
| Model Number | 208T-17/20/25/30/35/40mm |
| Minimum Order Quantity | 5/PCS |
| Price | US $ 5.8-58.8/PCS |
| Delivery Time | 2/day |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1000/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | 208T | Speciflcation | Shaft Hole 17-40mm |
|---|---|---|---|
| Material | CAR CER SSIC TC NBR | Usage | Unbalanced |
| Traemark | Bergman | Origin | Guangzhou, China |
| High Light | 40mm spring mechanical seal,water pump single spring mechanical seal,40mm single spring mechanical seal |
||
Product Description
208T Water Pump Singe Spring Mechanical Seal 17 20 25 30 35 40mm Shaft Hole
Mechanical Seal Type 208T 17 20 25 30 35 40 Water Pump Seal Mechanical Seal
Mechanical Seal Type 208T-17 20 25 30 35 40mm Submersible Pump Sewage Pump Water Pump Seal Mechanical Seal New Material SSIC SSIC TC TC NBR Manufacturer Excellent Quality Patented Technology Durable Mass Spot Fast Delivery
Description of Singe Spring Mechanical Seals.
Operating Limits:
Pressure: ≤1.2MPa
Speed: ≤10 m/s
Temperature: -30ºC~+200ºC
Rotary Ring(Plastic Carbon/Carbon/Sic/TC)
Stationary Ring(Ceramic/Sic/Tc)
Secondary Ring(nbr/Epdm/)
Spring and Retainer(Sus304)
| Model | d1(mm) | d7 | l1 | l3 |
| 208-10 | 10 | 21 | 30 | 5 |
| 208-12 | 12 | 23 | 30 | 5 |
| 208-14 | 14 | 26/28 | 38 | 6 |
| 208-16 | 16 | 28/30 | 38 | 5 |
| 208-18 | 18 | 33/35 | 38 | 5 |
| 208-20 | 20 | 35/36 | 40 | 5.5 |
| 208-25 | 25 | 40/41 | 48 | 8 |
| 208-30 | 30 | 45 | 51 | 8 |
| 208-35 | 35 | 50 | 51 | 8 |
| 208-40 | 40 | 58 | 58 | 9 |
| 208-45 | 45 | 63 | 58 | 9 |
Fixing and Applying Directions of Mechanical Seals
| 1. Select Appropriate mechanical seal to match the materials according to work conditions and host machine equipment. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 2. The radial acting deviation for the shaft(shaft sleeve) of the installed mechanical seal shall be 0.04mm by maximum while the axial movement value of the rotor shall be no more than 0.1mm. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 3. The seal cover (or shaft cover) of the stationary ring of the installed mechanical seals,the vertical degree of the seal face should be 0.04mm by maximum. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 4. When installing the mechanical seals,the shaft(shaft sleeve),seal chamber,seal face as well as the mechanical seal must be cleaned in order to keep from any medium to sealing part. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 5. When conveying medium of over high or low temperature,with medium which are easy catch fire,easy for explosion. Related mechanical seal standards must be referred to take appropriate measures such as quench,rinsing,coolong and filtrating. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 6. Appropricate lubrication must be choosen when mechanical seal is installed.The installment size of the mechanical seal must be guaranteed to the installment instruction. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 7. Before the machine starts running,the hermetic compartment shall be full of medium and well lubricated.Dry friction which may lead to the damage of the air-tightness is strict forbidden. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
We are a manufacturer. All seals have bulk inventory and can be shipped to you quickly. We promise to ship you in small quantities within 3 days.Advanced technology, excellence, replace original
| 1. Different models of mechanicals seals for a wide variety of Grundfos® pumps, among them: CR(N), NB, NK, CLM, LP, TP, etc. Available in diverse combinations of materials and different diameters: 12, 16, 22, 28, 33, etc. Also mechanical seals for Sarlin®. Division of waster pumps. Available in various materials: silicon-graphite carbide, silicon carbide-silicon carbide; combined with EPDM and FKM elastomers. |
| 2. Mechanical seals for Fristam® pumps. Wide range of models and materials in the most standard diameters: 22,30 and 35 mm. Different assembly possibilities for the most well-known pump models: FP, FL and FT. |
| 3. Broad range of mechanical seals compatible with Flygt® and Grindex® waste water pumps. These mechanical seals are characterized by their easy and fast installation, without having to make any modification to the pump. Manufactured in stainless steel and in solid tungsten carbide. Special tools are not necessary for their installation. |
| 4. Mechanical seals for EMU® pumps. They get two static faces and one rotating face. We can supply the complete seal or spare faces. |
| 5. Different designs of mechanical seals for Ebara® pumps, single and double seals in combinations carbide-silicon carbide and graphite-aluminium oxide. |
| 6. Mechanical seals for all types of Calpeda® pumps: centrifugal pumps, multistage, submersible. Different models of mechanical seals in a wide range of materials. |
| 7. Mechanical seals compatible for APV® pumps, among them: Puma, ZMA, ZMB, ZMD, ZMS, ZMH, ZMK. Rosista® and Pasilac®, W and W+. Some designs with wave spring like the special seals for APV Howard® pumps and Crepaco Clean Line®. All of them have been manufactured in materials suitable for working with fluids such as juices, milk and drinks in general. |
| 8. Allweiler, Simple design of mechanical seals simple but with special measures for this type of pump. |
FAQ
Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.
Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.
Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.
Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.
Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.
Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.
Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
