104B Industrial O Ring Seal Automotive Water Pump Seal 25mm 30mm Unbalanced

Place of Origin Guangzhou, China
Brand Name Bogeman
Certification ISO SGS
Model Number 104B
Minimum Order Quantity 1/PCS
Price US $ 11.8-38.8/PCS
Packaging Details Carton
Delivery Time 2/day
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model 104B Speciflcation Shaft Hole 25-50mm
Material CAR SSIC TC EPDM Usage Unbalanced
Traemark Bergman Origin Guangzhou, China
High Light

25mm Automotive Water Pump Seal

,

EPDM Automotive Water Pump Seal

,

25mm Industrial Mechanical Seals

Leave a Message
Product Description

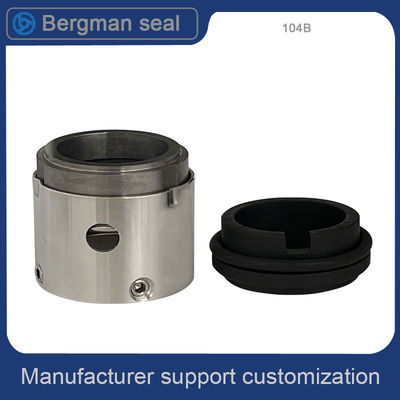

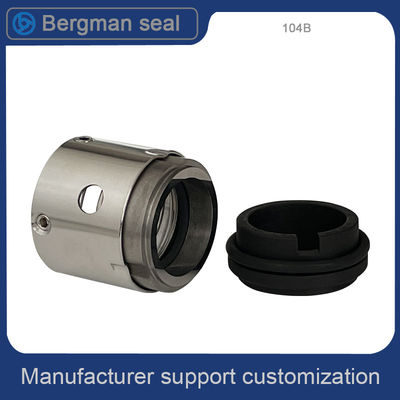

104B Industrial O Ring Seal Automotive Water Pump Seal 25mm 30mm Unbalanced​



Mechanical Seal Type 104B Industrial Pump O-Ring Seal Mechanical Seal



Basic Info.

Model NO.

Metal bellows seal

Manifold Pump Seal

104B Seal

Grundfos Pump Seal

Rubber Bellow Seal

Che Pump Seal

Mechanical Seal

Flygt pump seal

Pump Seal

Industrial Pump

Oil pump seal

ABS Pump Seal

Blackmer Seal

Food pump seal

CAR/SIC/TC/

Lowara Pump Seal

O-ring

Oil pump seal

SS304/316

Automotive pump seal

Skeleton oil seal

Specification

25mm and 50mm

Origin

China

HS Code

84842000



1. Basic Features

Structure: Single End
Pressure: Medium Pressure Mechanical Seals
Speed: General Speed Mechanical Seal
Temperature: High Temperature Mechanical Seal
Performance: Wear
Standard: DIN24960, ISO3069, GB6556-94
Model NO.: Type 104B
Balance: Unbalanced
Specification: Inner Diameter: 25 mm to 50 mm



2. Product Detailed Description

Type 104B Mechanical Seal for Clean Water Pumps, Circulating Pumps and Vacuum Pumps

1. Structural Features: single end, unbalanced, fixed direction of rotation, touched coil spring transmission. This component has a touched coil spring so you need to pay attention to the shaft rotating direction.
2. Industrial Standards: DIN24960, ISO3069, GB6556-94
3. Scopes of Application: widely used in many types of chemical pumps and clean water pumps.

3. Operation Parameters:

Pressure: 0.8 MPa or less
Temperature: - 20 ~ 220 ºC
Linear Speed: 15 m/s or less
Materials:
Rotary Ring: Carbon/SiC/TC
Stationary Ring: SiC/TC
Elastomers: NBR/EPDM//Aflas/PTFE/FFKM
Springs: SS304/SS316
Metal Parts: 410S/SS304/SS316/SS316L

4. Mediums: weak acid, weak alkalis, water and solvents.

104B Industrial O Ring Seal Automotive Water Pump Seal 25mm 30mm Unbalanced 0104B Industrial O Ring Seal Automotive Water Pump Seal 25mm 30mm Unbalanced 1104B Industrial O Ring Seal Automotive Water Pump Seal 25mm 30mm Unbalanced 2104B Industrial O Ring Seal Automotive Water Pump Seal 25mm 30mm Unbalanced 3


We are a manufacturer. All seals have bulk inventory and can be shipped to you quickly. We promise to ship you in small quantities within 3 days.Advanced technology, excellence, replace original



1. Different models of mechanicals seals for a wide variety of Grundfos® pumps, among them: CR(N), NB, NK, CLM, LP, TP, etc. Available in diverse combinations of materials and different diameters: 12, 16, 22, 28, 33, etc. Also mechanical seals for Sarlin®. Division of waster pumps. Available in various materials: silicon-graphite carbide, silicon carbide-silicon carbide; combined with EPDM and FKM elastomers.

2. Mechanical seals for Fristam® pumps. Wide range of models and materials in the most standard diameters: 22,30 and 35 mm. Different assembly possibilities for the most well-known pump models: FP, FL and FT.

3. Broad range of mechanical seals compatible with Flygt® and Grindex® waste water pumps. These mechanical seals are characterized by their easy and fast installation, without having to make any modification to the pump. Manufactured in stainless steel and in solid tungsten carbide. Special tools are not necessary for their installation.

4. Mechanical seals for EMU® pumps. They get two static faces and one rotating face. We can supply the complete seal or spare faces.

5. Different designs of mechanical seals for Ebara® pumps, single and double seals in combinations carbide-silicon carbide and graphite-aluminium oxide.

6. Mechanical seals for all types of Calpeda® pumps: centrifugal pumps, multistage, submersible. Different models of mechanical seals in a wide range of materials.

7. Mechanical seals compatible for APV® pumps, among them: Puma, ZMA, ZMB, ZMD, ZMS, ZMH, ZMK. Rosista® and Pasilac®, W and W+. Some designs with wave spring like the special seals for APV Howard® pumps and Crepaco Clean Line®. All of them have been manufactured in materials suitable for working with fluids such as juices, milk and drinks in general.

8. Allweiler, Simple design of mechanical seals simple but with special measures for this type of pump.

9. Different models of mechanical seals compatible for Alfa-Laval® pumps series CM, FM, MR, LKH,GM and ALC. Also the models for the range of lobular SSP and SR pumps. Mechanical seals in different combination of materials tungsten carbide, silicon carbide, graphite; combined with different types of elastomers: NBR, EPDM and FKM.





104B Industrial O Ring Seal Automotive Water Pump Seal 25mm 30mm Unbalanced 4104B Industrial O Ring Seal Automotive Water Pump Seal 25mm 30mm Unbalanced 5



Fixing and Applying Directions of Mechanical Seals



1. Select Appropriate mechanical seal to match the materials according to work conditions and host machine equipment.
2. The radial acting deviation for the shaft(shaft sleeve) of the installed mechanical seal shall be 0.04mm by maximum while the axial movement value of the rotor shall be no more than 0.1mm.
3. The seal cover (or shaft cover) of the stationary ring of the installed mechanical seals,the vertical degree of the seal face should be 0.04mm by maximum.
4. When installing the mechanical seals,the shaft(shaft sleeve),seal chamber,seal face as well as the mechanical seal face
should be 0.04mm by maximum.
5. When conveying medium of over high or low temperature,with medium which are easy catch fire,easy for explosion.Related mechanical seal standards must be referred to take appropriate measures such as quench,rinsing,coolong and filtrating.
6. Appropricate lubrication must be choosen when mechanical seal is installed.The installment size of the mechanical seal must be guaranteed to the installment instruction.
7. Before the machine starts running,the hermetic compartment shall be full of medium and well lubricated.Dry friction which may lead to the damage of the air-tightness is strict forbidden.
