SGS John Crane Type Pump Mechanical Seal Silicon Carbide 2100S 2100K 304 Spring

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xModel | TJ-2100-K | Speciflcation | Shaft Hole 10mm-100mm |
---|---|---|---|
Materrial | CAR CER SIC SSIC TC NBR EPDM | Usage | Unbalanced |
Traemark | Bergman | Origin | Guangzhou, China |
Highlight | SGS Silicon Carbide Mechanical Seal,100mm Silicon Carbide Mechanical Seal,SGS silicon carbide seals |

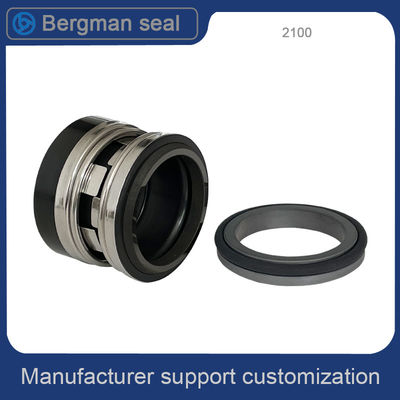

SGS John Crane Type Silicon Carbide Mechanical Seal 2100S 2100K 304 Spring
John Crane Type 2100S 2100K Pump Seal Mechanical Seal Single Spring Bellows
Model NO. | TJ2100 | Type | TJ-0250-K |
Balance | Unbalanced | Rotary Ring | Ceramic/Sic |
Stationary Ring | Plastic Carbon/Carbon/Sic | Spring | SUS304/SUS316 |
Secondary Seal | NBR/EPDM/HNBR/ | Trademark | Bergman |
Transport Package | Carton | Specification | 15mm to 100mm |
Origin | China | HS Code | 8484200 |
John Crane Type 2100S 2100K 2100N rubber bellow design.
Operating range: | Material: |
Temperature: -25--200℃ | Seal ring: Car, Sic, Ssic, Ceramic, TC |
Speed: 15m/s. | Secondary seal: NBR, EPDM, etc. |
Pressure: 18bar | Spring and metal parts: 304, 316, HAST.C |
Standard size: 10-100mm |
Size/ | TJ 2100S | TJ 2100K | TJ 2100N | ||||
Metric | D3 | D6 | D7 | L4 | L3 | L31 | L32 |
10 | 20 | 15 | 21 | 15 | 27.5 | 35 | 5 |
12 | 22 | 17 | 23 | 15 | 26.5 | 34 | 6 |
14 | 24 | 19 | 25 | 15 | 29 | 34 | 6 |
15 | 25 | 20 | 26 | 15 | 29 | 34 | 6 |
16 | 26 | 23 | 27 | 15 | 29 | 34 | 6 |
18 | 32 | 25 | 33 | 20 | 31.5 | 39 | 6 |
20 | 34 | 27 | 35 | 20 | 31.5 | 39 | 6 |
22 | 36 | 29 | 37 | 20 | 31.5 | 39 | 6 |
24 | 38 | 31 | 39 | 20 | 34 | 44 | 6 |
25 | 39 | 32 | 40 | 20 | 34 | 44 | 6 |
28 | 42 | 35 | 43 | 26 | 36.5 | 44 | 6 |
30 | 44 | 37 | 45 | 26 | 35.5 | 43 | 7 |
32 | 46 | 40 | 48 | 26 | 35.5 | 48 | 7 |
33 | 47 | 40 | 48 | 26 | 35.5 | 48 | 7 |
35 | 49 | 42 | 50 | 26 | 34.5 | 47 | 8 |
38 | 54 | 47 | 56 | 30 | 37 | 47 | 8 |
40 | 56 | 49 | 58 | 30 | 37 | 47 | 8 |
43 | 59 | 52 | 61 | 30 | 37 | 52 | 8 |
45 | 61 | 54 | 63 | 30 | 37 | 52 | 8 |
48 | 64 | 57 | 66 | 30 | 35 | 50 | 10 |
50 | 66 | 60 | 70 | 30 | 37.5 | 50 | 10 |
53 | 69 | 63 | 73 | 30 | 37.5 | 60 | 10 |
55 | 71 | 65 | 75 | 30 | 37.5 | 60 | 10 |
58 | 78 | 68 | 78 | 33 | 42.5 | 60 | 10 |
60 | 80 | 70 | 80 | 33 | 40.5 | 58 | 12 |
63 | 83 | 73 | 83 | 33 | 40.5 | 58 | 12 |
65 | 85 | 75 | 85 | 33 | 40.5 | 68 | 12 |
68 | 88 | 79 | 90 | 33 | 40.5 | 68 | 12 |
70 | 90 | 81 | 92 | 33 | 48 | 68 | 12 |
75 | 99 | 86 | 97 | 40 | 48 | 68 | 12 |
80 | 104 | 92 | 105 | 40 | 47.5 | 77.5 | 12.5 |
85 | 109 | 97 | 110 | 40 | 47.5 | 77.5 | 12.5 |
90 | 114 | 102 | 115 | 40 | 52.5 | 77.5 | 12.5 |
95 | 119 | 117 | 120 | 40 | 52.5 | 77.5 | 12.5 |
100 | 124 | 122 | 125 | 40 | 52.5 | 77.5 | 12.5 |
Manufacturers bulk spot product real shot product pictures good workmanship beautiful good quality bulk delivery
We are a manufacturer. All seals have bulk inventory and can be shipped to you quickly. We promise to ship you in small quantities within 3 days.Advanced technology, excellence, replace original
1. Different models of mechanicals seals for a wide variety of Grundfos® pumps, among them: CR(N), NB, NK, CLM, LP, TP, etc. Available in diverse combinations of materials and different diameters: 12, 16, 22, 28, 33, etc. Also mechanical seals for Sarlin®. Division of waster pumps. Available in various materials: silicon-graphite carbide, silicon carbide-silicon carbide; combined with EPDM and FKM elastomers.
2. Mechanical seals are available for different references Gorman-Rupp® pumps. Special models for the transfer of clean water, sewage, oil industry, agriculture and others.
GRN-38'1
3. Mechanical seals for Fristam® pumps. Wide range of models and materials in the most standard diameters: 22,30 and 35 mm. Different assembly possibilities for the most well-known pump models: FP, FL and FT.
4. Broad range of mechanical seals compatible with Flygt® and Grindex® waste water pumps. These mechanical seals are characterized by their easy and fast installation, without having to make any modification to the pump. Manufactured in stainless steel and in solid tungsten carbide. Special tools are not necessary for their installation.
5. Mechanical seals for EMU® pumps. They get two static faces and one rotating face. We can supply the complete seal or spare faces.
6. Different designs of mechanical seals for Ebara® pumps, single and double seals in combinations carbide-silicon carbide and graphite-aluminium oxide.
7. Mechanical seals for all types of Calpeda® pumps: centrifugal pumps, multistage, submersible. Different models of mechanical seals in a wide range of materials.
8. Mechanical seals compatible for APV® pumps, among them: Puma, ZMA, ZMB, ZMD, ZMS, ZMH, ZMK. Rosista® and Pasilac®, W and W+. Some designs with wave spring like the special seals for APV Howard® pumps and Crepaco Clean Line®. All of them have been manufactured in materials suitable for working with fluids such as juices, milk and drinks in general.
9. Allweiler, Simple design of mechanical seals simple but with special measures for this type of pump.
Fixing and Applying Directions of Mechanical Seals
1. Select Appropriate mechanical seal to match the materials according to work conditions and host machine equipment. |
2. The radial acting deviation for the shaft(shaft sleeve) of the installed mechanical seal shall be 0.04mm by maximum while the axial movement value of the rotor shall be no more than 0.1mm. |
3. The seal cover (or shaft cover) of the stationary ring of the installed mechanical seals,the vertical degree of the seal face should be 0.04mm by maximum. |
4. When installing the mechanical seals,the shaft(shaft sleeve),seal chamber,seal face as well as the mechanical seal face should be 0.04mm by maximum. |
5. When conveying medium of over high or low temperature,with medium which are easy catch fire,easy for explosion.Related mechanical seal standards must be referred to take appropriate measures such as quench,rinsing,coolong and filtrating. |
6. Appropricate lubrication must be choosen when mechanical seal is installed.The installment size of the mechanical seal must be guaranteed to the installment instruction. |
7. Before the machine starts running,the hermetic compartment shall be full of medium and well lubricated.Dry friction which may lead to the damage of the air-tightness is strict forbidden. |
