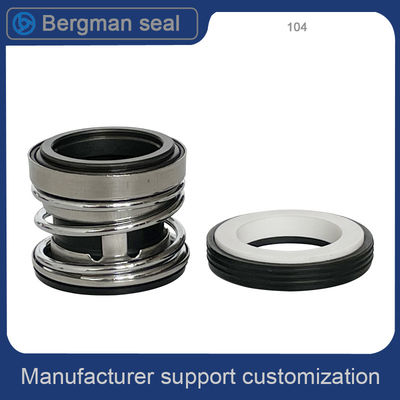

High Flexibility 104 45mm Automotive Water Pump Seal For Sugar Industry

Place of Origin Guangzhou, China
Brand Name Bogeman
Certification ISO SGS
Model Number 104
Minimum Order Quantity 10/PCS
Price US $ 0.6-28.8/PCS
Packaging Details Carton
Delivery Time 2/day
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 10000/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Model 104 Speciflcation Shaft Hole 12-45mm
Material CAR CER SSIC TC NBR EPDM Usage Unbalanced
Traemark Bergman Origin Guangzhou, China
High Light

45mm Automotive Water Pump Seal


12mm Automotive Water Pump Seal


12mm water pump ceramic seal

Leave a Message
Product Description


High Flexibility 104 45mm Automotive Water Pump Seal For Sugar Industry


Mechanical Seal Type 104-12 14 15 20 25 45mm Pump Seals Mechanical Seals


Model NO.
Transport Package
Carton or Plywood Box
HS Code


Applicable Range:

Pressure in the seal chamber: 0-0.8MPa
Temperature in the seal chamber: -20ºC----180ºC
Linear Velocity: ≤ 10m/s
Medium: water,polluted water,oil and minor corrosive liquid
Static ring code: 104

For plain shafts
Shaft diameter d=11mm-45mm
High flexibility due to wide offer on materials
Dimension adaptions and additional seats available


Process industry
Chemical industry
Pulp and paper industry
Water and waste water technology
Sugar industry
Model(mm) d D7 L L1 L2
104-11 11 24 20 6 14
104-12 12 24/26 20 6 14
104-14 14 26/28 25 7 18
104-15 15 28 25 7 18
104-16 16 28 25 7 18
104-17 17 34/35 25 7 18
104-18 18 34/35 25 7 18
104-19 19 36 25 7 18
104-20 20 36 25 7 18
104-22 22 38 25 7 18
104-25 25 41 37 9 28
104-30 30 46 37 9 28
104-35 35 51 37 9 28
104-40 40 60 40 10 30
104-45 45 65 40 10 30





High Flexibility 104 45mm Automotive Water Pump Seal For Sugar Industry 0High Flexibility 104 45mm Automotive Water Pump Seal For Sugar Industry 1


We are a manufacturer. All seals have bulk inventory and can be shipped to you quickly. We promise to ship you in small quantities within 3 days.Advanced technology, excellence, replace original

1. Mechanical seals are available for different references Gorman-Rupp® pumps. Special models for the transfer of clean water, sewage, oil industry, agriculture and others.

2. Mechanical seals for Fristam® pumps. Wide range of models and materials in the most standard diameters: 22,30 and 35 mm. Different assembly possibilities for the most well-known pump models: FP, FL and FT.

3. Broad range of mechanical seals compatible with Flygt® and Grindex® waste water pumps. These mechanical seals are characterized by their easy and fast installation, without having to make any modification to the pump. Manufactured in stainless steel and in solid tungsten carbide. Special tools are not necessary for their installation.

4. Mechanical seals for EMU® pumps. They get two static faces and one rotating face. We can supply the complete seal or spare faces.

5. Different designs of mechanical seals for Ebara® pumps, single and double seals in combinations carbide-silicon carbide and graphite-aluminium oxide.

6. Mechanical seals for all types of Calpeda® pumps: centrifugal pumps, multistage, submersible. Different models of mechanical seals in a wide range of materials.

7. Mechanical seals compatible for APV® pumps, among them: Puma, ZMA, ZMB, ZMD, ZMS, ZMH, ZMK. Rosista® and Pasilac®, W and W+. Some designs with wave spring like the special seals for APV Howard® pumps and Crepaco Clean Line®. All of them have been manufactured in materials suitable for working with fluids such as juices, milk and drinks in general.

8. Allweiler, Simple design of mechanical seals simple but with special measures for this type of pump.

9. Different models of mechanical seals compatible for Alfa-Laval® pumps series CM, FM, MR, LKH,GM and ALC. Also the models for the range of lobular SSP and SR pumps. Mechanical seals in different combination of materials tungsten carbide, silicon carbide, graphite; combined with different types of elastomers: NBR, EPDM and FKM.


High Flexibility 104 45mm Automotive Water Pump Seal For Sugar Industry 2High Flexibility 104 45mm Automotive Water Pump Seal For Sugar Industry 3


Fixing and Applying Directions of Mechanical Seals

1. Select Appropriate mechanical seal to match the materials according to work conditions and host machine equipment.
2. The radial acting deviation for the shaft(shaft sleeve) of the installed mechanical seal shall be 0.04mm by maximum
while the axial movement value of the rotor shall be no more than 0.1mm.
3. The seal cover (or shaft cover) of the stationary ring of the installed mechanical seals,the vertical degree of the seal
face should be 0.04mm by maximum.
4. When installing the mechanical seals,the shaft(shaft sleeve),seal chamber,seal face as well as the mechanical seal
must be cleaned in order to keep from any medium to sealing part.
5. When conveying medium of over high or low temperature,with medium which are easy catch fire,easy for explosion.
Related mechanical seal standards must be referred to take appropriate measures such as quench,rinsing,coolong and
6. Appropricate lubrication must be choosen when mechanical seal is installed.The installment size of the mechanical
seal must be guaranteed to the installment instruction.
7. Before the machine starts running,the hermetic compartment shall be full of medium and well lubricated.Dry friction
which may lead to the damage of the air-tightness is strict forbidden.


Question : Are you a factory or a trade company?

Answer: We are a factory and have our top sales for the trade service.

Question : Where is your factory located? How can I visit there?

Answer: Our factory is located in Guangzhou, China. You can fly to Guangzhou airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
