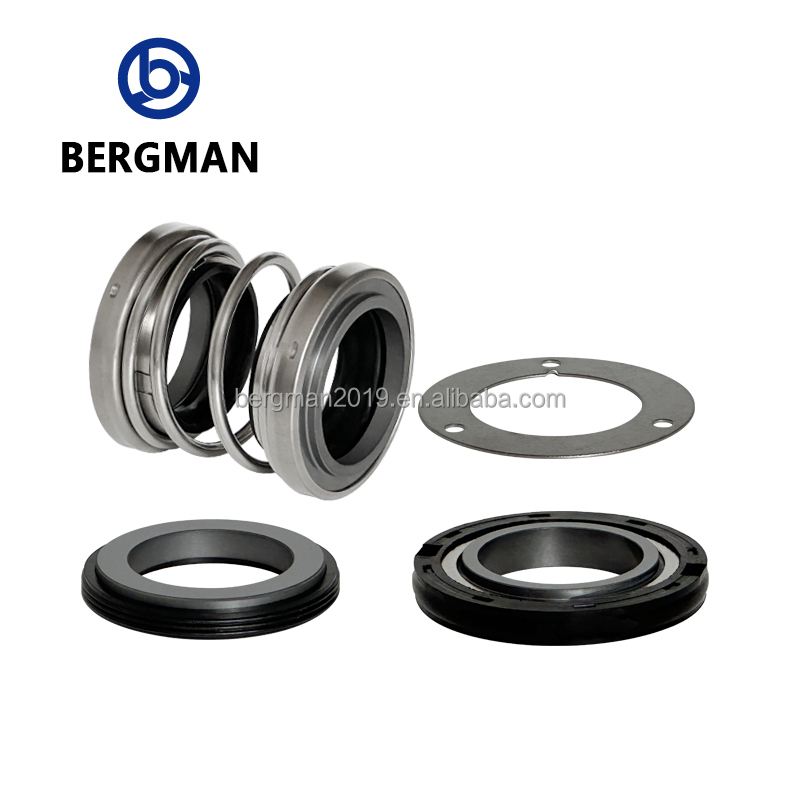

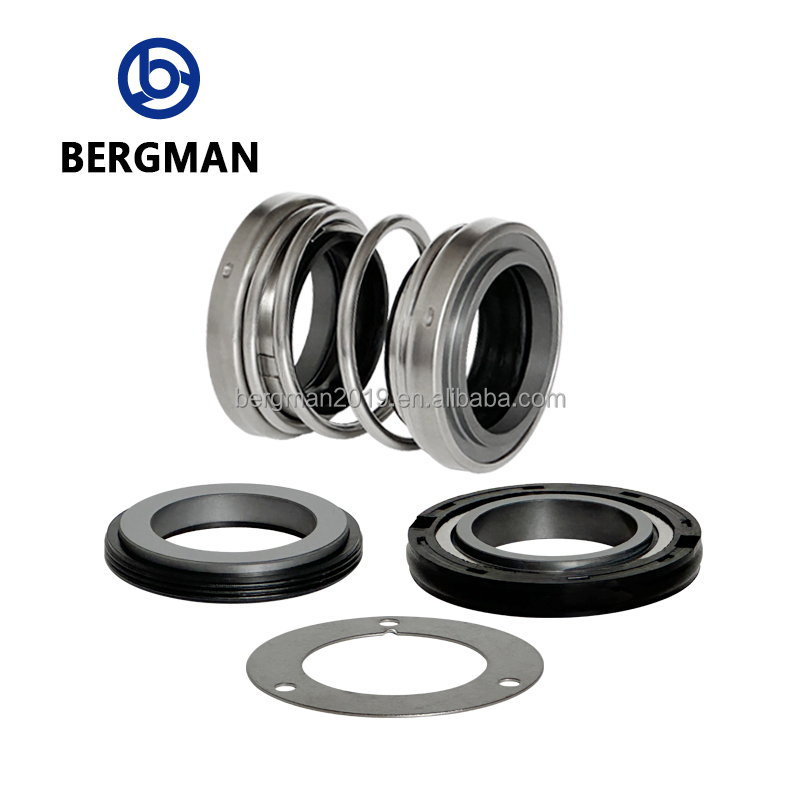

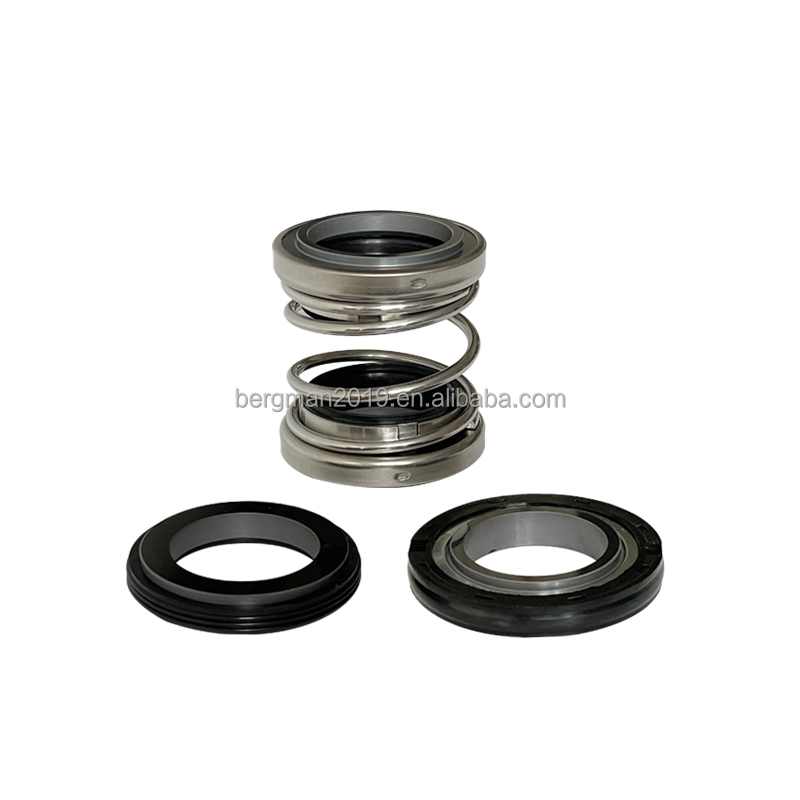

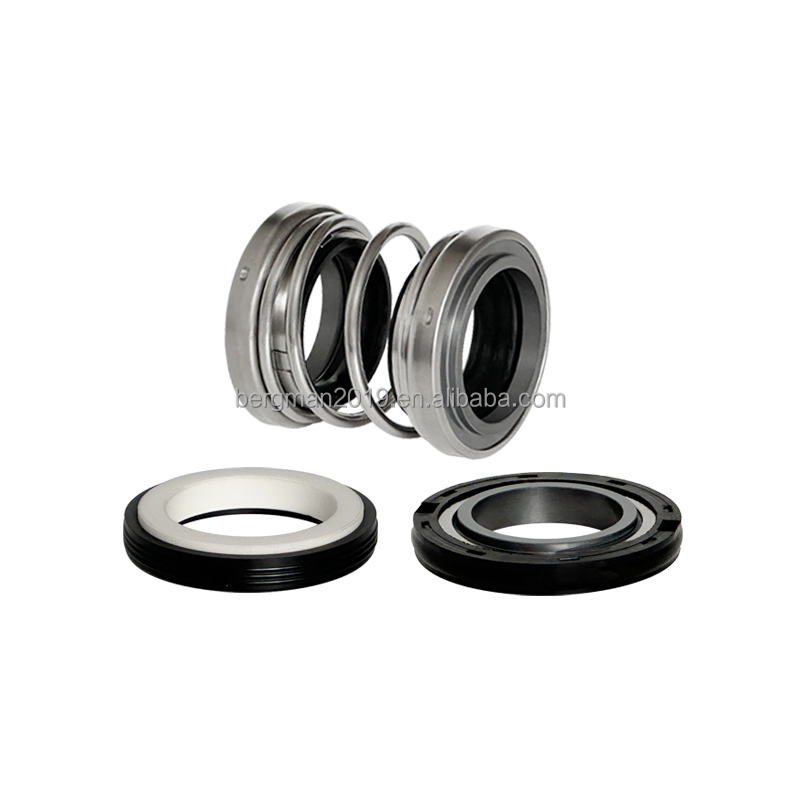

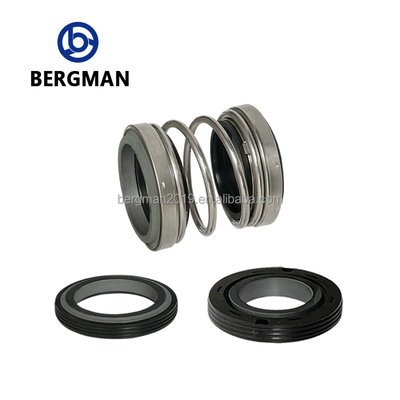

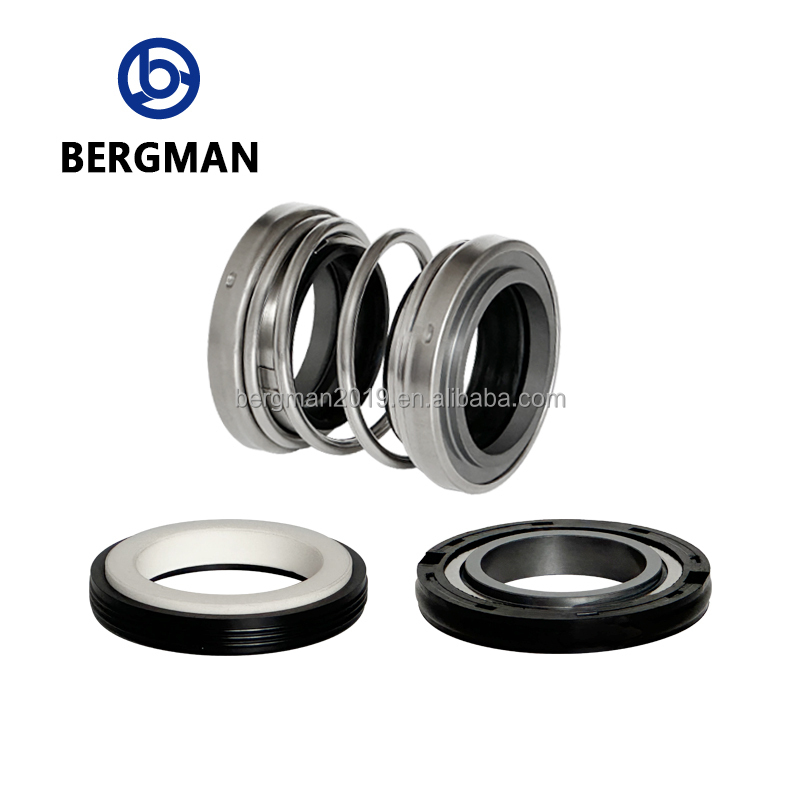

BERGMAN 560D-40mm Rotary Pump Mechanical Seal for WQ Submersible Pumps
| Place of Origin | CN:GUANGZHOU |
|---|---|
| Brand Name | BERGMAN |
| Model Number | 560D |
| Minimum Order Quantity | 1 |
| Price | $16-20 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 40mm | Model | 560D |
|---|---|---|---|
| Pressure | ≤ 0.3mpa | Temperature Range | -20°C-70°C |
| Line Speed | ≤ 5m/s | Face Material | CAR SIC |
| Seat Material | CER SIC | Secondary Seal | NBR VITON |
| Metal Parts | SS304 SS316 | Shaft Size | 25/30, 30/35, 40/45, 45/50 |
| Standard Sizes | 14/15/16mm, 17/18/19mm, 20/25/30mm, 35/40/45mm, 50/60/70mm | Max Temperature | 120°C (depends On O-ring) |
| Max Line Speed | ≤ 10m/s | Face Width | 40mm |
| Material Options | Tungsten Carbide, Silicon Carbide, Carbon Graphite, Alumina | ||
| Highlight | 40mm rotary pump mechanical seal,WQ submersible pump seal,BERGMAN mechanical seal with warranty |
||
Product Description
ED 560D-40mm Facing Size EBARA Kawami WQ Submersible Pump Mechanical Seal
| Attribute | Value |
|---|---|
| Size | 40mm |
| Country of Origin | Guangzhou, China |
| Brand | BERGMAN |
| Product Name | Mechanical Seal |
| Model | 560D |
| Application | Rotary Pump |
| Pressure | ≤ 0.3mpa |
| Temperature | ≤ -20°C-70°C |
| Line Speed | ≤ 5m/s |
| Service | OEM Customization Service |
Product Description
Operating Conditions and Specifications
| Name | Mechanical Seal | Size | Standard Size |
| Model | 560D | Pressure | ≤ 0.3mpa |
| Temperature | -20°C-120°C (Depends on O-ring material) | Line Speed | ≤ 10m/s |
| Face Material | CAR SIC | Seat Material | CER SIC |
| Secondary Seal | NBR VITON | Metal Parts | SS304 SS316 |
| Certificate | ISO9001-2015 | Service | OEM Customization Service |
Key Features
- Available in sizes: 13-70mm with shaft sizes: 25/30, 30/35, 40/45, 45/50
- Compatible with Ebara pump, Southern pump, Hejian pump and most WQ submersible pumps
- 2000+ square meters warehouse with large inventory for fast delivery
- Can replace Burgman, John Crane, AES and other world-renowned brand water pump seals
- OEM and customization services available
Material Advantages
Wear-resistant materials including tungsten carbide, silicon carbide, carbon graphite, alumina, rubber seals, PTFE seals, and O-rings.
Company Profile
Guangzhou Bogman Mechanical Seals Co., Ltd. (formerly Guangzhou Yongfa Mechanical Seals Co., Ltd.) was established in 1996. After more than 20 years of development, the company has passed ISO9001:2015 certification and offers a wide range of mechanical seals and sealing materials including cemented carbide, silicon carbide, carbon graphite, and alumina.
Located in Guangzhou with access to major ports, we maintain a 2000+ square meter warehouse for efficient logistics and quick delivery.
Exhibition and Warehouse
Over 1000 product varieties in exhibition halls and 2000+ square meters of spot warehouse available for video viewing.
Production Facility
Modern advanced machine tool equipment in dust-free workshops with inspection equipment and assembly line operations. Each mechanical seal undergoes factory inspection and pressure testing.
Application Range
Widely used in pipeline pumps, centrifugal pumps, sewage pumps, and chemical pumps for petroleum, chemical, aerospace, pharmaceutical, food, and agricultural irrigation applications.
Frequently Asked Questions
Q: Are you a factory or a trader?
A: We are a production factory with our own international trade department.
Q: Where is your factory located?
A: Our factory is located in Guangzhou City, near Guangzhou Port and Shenzhen Port.
Q: How many days is your delivery time?
A: Stock items ship immediately after payment. Custom items require 10-25 days production time.
Contact Information
International Trade:
Li Wei: +86-15622176299
Yang Yingjie (WeChat/WhatsApp): +86-15627223988
Yang Aijun (WeChat/WhatsApp): +86-13602719849
Email: bergman168@outlook.com
