John Crane Type T2 Pump Mechanical Seal SUS304 Elastomer Bellow Seals

Place of Origin Guangzhou, China
Brand Name Bogeman
Certification ISO SGS
Model Number Type T2 0.5mm-4"mm
Minimum Order Quantity 5/PCS
Price US $ 1.8-168/PCS
Packaging Details Carton
Delivery Time 2/day
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 6000/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model Type 2 Speciflcation Shaft Hole 0.5mm-4"mm
Materoal CAR CER SIC SSIC TC NBR EPDM Usage Unbalanced
Traemark Bergman Origin Guangzhou, China
High Light

SUS304 Pump Mechanical Seal

,

SS304 Pump Mechanical Seal

,

SUS304 Elastomer Bellow Seals

Leave a Message
Product Description

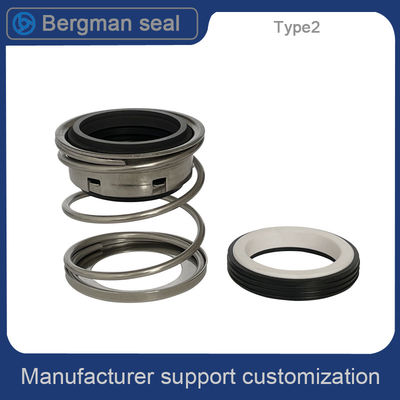

John Crane Type T2 Pump Mechanical Seal SUS304 Elastomer Bellow Seals



Elastomer Bellow Seal , Replacement Of John Crane Type T2 Mechanical Pump Seals





Model NO.

T1

Type

T2

Balance

Unbalanced

Rotary Ring

Ceramic/Sic

Stationary Ring

Plastic Carbon/Carbon/Sic

Spring

SUS304/SUS316

Secondary Seal

NBR/EPDM/HNBR/

Trademark

Bergman

Transport Package

Carton

Specification

1/2mm to 3-1/2mm

Origin

China

HS Code

84842000

STRUCTURE DESCRIPTION

Replacement of John Crane Type 2, rubber bellow design.





Operating range:

Material:

Temperature: -25--200℃

Seal ring: Car, Sic, Ssic, Ceramic, TC

Speed: 15m/s.

Secondary seal: NBR, EPDM, etc.

Pressure: 14bar

Spring and metal parts: 304, 316, HAST.C

Standard size: 1/2-3-1/2mm or 0.5”-4.0”



















Model

d1(inches)

d3

d7

l1

l3

BGM TYPE2-1"

25.4

46

41.275

36.5

11.1

BGM TYPE2-11/8"

28.575

49.2

44.45

38.1

11.1

BGM TYPE2-11/4"

31.75

52.4

47.625

38.1

11.1

BGM TYPE2-13/8 "

34.925

57.2

50.8

39.7

11.1

BGM TYPE2-1 1/2"

38.1

60.3

53.975

39.7

11.1

BGM TYPE2-1 5/8 "

41.275

69

60.325

47.63

12.7

BGM TYPE2-13/4"

44.45

69.9

63.5

47.63

12.7

BGM TYPE2-1 7/8"

47.625

73

66.675

50.8

12.7

BGM TYPE2-2"

50.8

76.2

69.85

50.8

12.7

BGM TYPE2-2 1/8"

53.975

82.5

76.2

57.15

14.3

BGM TYPE2-2 1/4"

57.15

85.7

79.375

57.15

14.3

BGM TYPE2-2 3/8 "

60.325

88.9

82.55

60.3

14.3

BGM TYPE2-21/2"

63.5

94

85.725

60.3

14.3

BGM TYPE2-3 "

76.2

107.95

98.425

68.28

15.9

BGM TYPE2-4"

101.6

141.28

123.83

78.57

19.84

Product real shot photos Excellent workmanship, durable, good quality, beautiful bulk spot



John Crane Type T2 Pump Mechanical Seal SUS304 Elastomer Bellow Seals 0

John Crane Type T2 Pump Mechanical Seal SUS304 Elastomer Bellow Seals 1

John Crane Type T2 Pump Mechanical Seal SUS304 Elastomer Bellow Seals 2



We are a manufacturer. All seals have bulk inventory and can be shipped to you quickly. We promise to ship you in small quantities within 3 days.



1. Different models of mechanicals seals for a wide variety of Grundfos® pumps, among them: CR(N), NB, NK, CLM, LP, TP, etc. Available in diverse combinations of materials and different diameters: 12, 16, 22, 28, 33, etc. Also mechanical seals for Sarlin®. Division of waster pumps. Available in various materials: silicon-graphite carbide, silicon carbide-silicon carbide; combined with EPDM and FKM elastomers.

2. Mechanical seals are available for different references Gorman-Rupp® pumps. Special models for the transfer of clean water, sewage, oil industry, agriculture and others.GRN-38'1

3. Mechanical seals for Fristam® pumps. Wide range of models and materials in the most standard diameters: 22,30 and 35 mm. Different assembly possibilities for the most well-known pump models: FP, FL and FT.

4. Broad range of mechanical seals compatible with Flygt® and Grindex® waste water pumps. These mechanical seals are characterized by their easy and fast installation, without having to make any modification to the pump. Manufactured in stainless steel and in solid tungsten carbide. Special tools are not necessary for their installation.

5. Mechanical seals for EMU® pumps. They get two static faces and one rotating face. We can supply the complete seal or spare faces.

6. Different designs of mechanical seals for Ebara® pumps, single and double seals in combinations carbide-silicon carbide and graphite-aluminium oxide.

7. Mechanical seals for all types of Calpeda® pumps: centrifugal pumps, multistage, submersible. Different models of mechanical seals in a wide range of materials.

8. Mechanical seals compatible for APV® pumps, among them: Puma, ZMA, ZMB, ZMD, ZMS, ZMH, ZMK. Rosista® and Pasilac®, W and W+. Some designs with wave spring like the special seals for APV Howard® pumps and Crepaco Clean Line®. All of them have been manufactured in materials suitable for working with fluids such as juices, milk and drinks in general.

9. Allweiler, Simple design of mechanical seals simple but with special measures for this type of pump.

10. Different models of mechanical seals compatible for Alfa-Laval® pumps series CM, FM, MR, LKH,GM and ALC. Also the models for the range of lobular SSP and SR pumps. Mechanical seals in different combination of materials tungsten carbide, silicon carbide, graphite; combined with different types of elastomers: NBR, EPDM and FKM.

11. Mechanical seals for ABS® submergible pumps specific wastewater treatment. Different models of mechanical seal available: oil chamber mechanical seal and water mechanical seal.



Factory panorama Production site Finished product inventory Exhibitors in the exhibition Bulk spot





Fixing and Applying Directions of Mechanical Seals


1, Select Appropriate mechanical seal to match the materials according to work conditions and host machine equipment.
2,The radial acting deviation for the shaft(shaft sleeve) of the installed mechanical seal shall be 0.04mm by maximum
while the axial movement value of the rotor shall be no more than 0.1mm.
3,The seal cover (or shaft cover) of the stationary ring of the installed mechanical seals,the vertical degree of the seal
face should be 0.04mm by maximum.
4,When installing the mechanical seals,the shaft(shaft sleeve),seal chamber,seal face as well as the mechanical seal
must be cleaned in order to keep from any medium to sealing part.
5,When conveying medium of over high or low temperature,with medium which are easy catch fire,easy for explosion.
Related mechanical seal standards must be referred to take appropriate measures such as quench,rinsing,coolong and
filtrating.
6,Appropricate lubrication must be choosen when mechanical seal is installed.The installment size of the mechanical
seal must be guaranteed to the installment instruction.
7,Before the machine starts running,the hermetic compartment shall be full of medium and well lubricated.Dry friction
which may lead to the damage of the air-tightness is strict forbidden.
