MG13 G6 G60 Bergman Type Industrial Mechanical Seals SUS304 Spring Holder

Place of Origin Guangzhou, China
Brand Name Bogeman
Certification ISO SGS
Model Number MG13-G6
Minimum Order Quantity 3/PCS
Price US $ 3.8-128/PCS
Packaging Details Carton
Delivery Time 2/day
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 3000/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model MG13 Industrial Mechanical Seals Speciflcation Shaft Hole 12mm-100mm
Material CAR CER SSIC TC NBR EPDM Usage Unbalanced
Traemark Bergman Origin Guangzhou, China
High Light

12mm Industrial Mechanical Seals

,

SUS304 Industrial Mechanical Seals

,

Bergman MG13

Leave a Message
Product Description

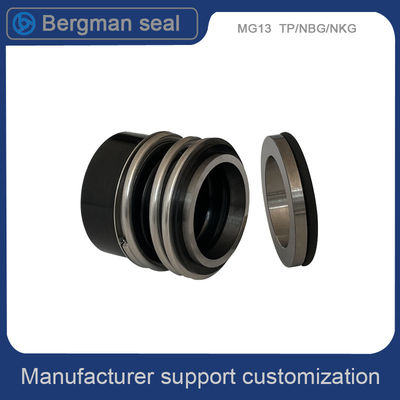

MG13 G6 G60 Bergman Type Industrial Mechanical Seals SUS304 Spring Holder



MG13 G6 G60 Bergman Mechanical Seals Holder



Model NO.

MG13

Type

MG13

Balance

Unbalanced

Rotary Ring

Ceramic/Sic

Stationary Ring

Plastic Carbon/Carbon/Sic

Spring

SUS304/SUS316

Secondary Seal

NBR/EPDM/HNBR/

Trademark

Bergman

Transport Package

Carton

Specification

12mm to 100mm

Origin

China

HS Code

84842000



Our Mechanical seal model MG13 can Replace AESSEAL B013, BURGMANN MG13 FLOWSERVE 193 and MTU FG3,which is
widely used for Hecker HN 41ONU and other kinds of pumps. we usually us seat type G6 for match it. The normal material
combination include carbon/ceramic/nbr/ss304,resin carbon/ceramic/nbr/ss304/,sic/sic/nbr/ss304,tc/tc/nbr/ss316 and so on.
we also can make changes as customers'requirement or totally totally design a new type of mechanical seal to meet clients'needs.


Operating Limits:







Pressure:

<1.2MPa

Speed:

<10m/s

Temperature:

-20C~+180C





● Stationary Ring(Ceramic/SiC/SiC)●Rotary Ring(Carbon/SiC)

● Secondary Seal(NBR/EPDM)

● Retainer(SUS304/SUS316). Spring(SUS304/SUS316)

● Spring Holder(SUS304/SUS316)







d1

d3

d7

l3

l28

10

22.5

21

33.4

6.6

12

25

23

33.4

6.6

14

28.5

25

33.4

6.6

15

28.5

27

-

-

16

28.5

27

33.4

6.6

17

32

33

-

7.5

18

32

33

37.5

7.5

19

37

35

-

7.5

20

37

35

37.5

7.5

22

37

37

37.5

7.5

24

42.5

39

42.5

7.5

25

42.5

40

42.5

7.5

28

49

43

42.5

7.5

30

49

45

42.5

7.5

32

53.5

48

47.5

7.5

33

53.5

48

47.5

7.5

35

57

50

47.5

7.5

38

59

56

46

9

40

62

58

46

9

42

65.5

-

-

43

65.5

61

51

9

45

68

63

51

9

48

70.5

66

51

9

50

74

70

50.5

9.5

53

78.5

73

59

11

55

81

75

59

11

58

85.5

78

59

11

60

88.5

80

59

11

65

93.5

85

69

11

68

96.5

90

68.7

11.3

70

99.5

92

68.7

11.3

75

107

97

68.7

11.3

80

112

105

78

12

85

120

110

76

14

90

127

115

76

14

95

132

120

76

14

100

137

125

76

14



MG13 G6 G60 Bergman Type Industrial Mechanical Seals SUS304 Spring Holder 0MG13 G6 G60 Bergman Type Industrial Mechanical Seals SUS304 Spring Holder 1



We are a manufacturer. All seals have bulk inventory and can be shipped to you quickly. We promise to ship you in small quantities within 3 days.Advanced technology, excellence, replace original





1. Different models of mechanicals seals for a wide variety of Grundfos® pumps, among them: CR(N), NB, NK, CLM, LP, TP, etc. Available in diverse combinations of materials and different diameters: 12, 16, 22, 28, 33, etc. Also mechanical seals for Sarlin®. Division of waster pumps. Available in various materials: silicon-graphite carbide, silicon carbide-silicon carbide; combined with EPDM and FKM elastomers.

2. Mechanical seals are available for different references Gorman-Rupp® pumps. Special models for the transfer of clean water, sewage, oil industry, agriculture and others.GRN-38'1

3. Mechanical seals for Fristam® pumps. Wide range of models and materials in the most standard diameters: 22,30 and 35 mm. Different assembly possibilities for the most well-known pump models: FP, FL and FT.

4.Broad range of mechanical seals compatible with Flygt® and Grindex® waste water pumps. These mechanical seals are characterized by their easy and fast installation, without having to make any modification to the pump. Manufactured in stainless steel and in solid tungsten carbide. Special tools are not necessary for their installation.

5. Mechanical seals for EMU® pumps. They get two static faces and one rotating face. We can supply the complete seal or spare faces.

6. Different designs of mechanical seals for Ebara® pumps, single and double seals in combinations carbide-silicon carbide and graphite-aluminium oxide.

7. Mechanical seals for all types of Calpeda® pumps: centrifugal pumps, multistage, submersible. Different models of mechanical seals in a wide range of materials.

8. Mechanical seals compatible for APV® pumps, among them: Puma, ZMA, ZMB, ZMD, ZMS, ZMH, ZMK. Rosista® and Pasilac®, W and W+. Some designs with wave spring like the special seals for APV Howard® pumps and Crepaco Clean Line®. All of them have been manufactured in materials suitable for working with fluids such as juices, milk and drinks in general.

9. Allweiler, Simple design of mechanical seals simple but with special measures for this type of pump.

10. Different models of mechanical seals compatible for Alfa-Laval® pumps series CM, FM, MR, LKH,GM and ALC. Also the models for the range of lobular SSP and SR pumps. Mechanical seals in different combination of materials tungsten carbide, silicon carbide, graphite; combined with different types of elastomers: NBR, EPDM and FKM.



Factory real shots Production site Exhibition exhibition Finished products inventory We have bulk stocks Fast delivery and good quality





Fixing and Applying Directions of Mechanical Seals


1. Select Appropriate mechanical seal to match the materials according to work conditions and host machine equipment.
2. The radial acting deviation for the shaft(shaft sleeve) of the installed mechanical seal shall be 0.04mm by maximum
while the axial movement value of the rotor shall be no more than 0.1mm.
3. The seal cover (or shaft cover) of the stationary ring of the installed mechanical seals,the vertical degree of the seal
face should be 0.04mm by maximum.
4. When installing the mechanical seals,the shaft(shaft sleeve),seal chamber,seal face as well as the mechanical seal
must be cleaned in order to keep from any medium to sealing part.
5. When conveying medium of over high or low temperature,with medium which are easy catch fire,easy for explosion.
Related mechanical seal standards must be referred to take appropriate measures such as quench,rinsing,coolong and
filtrating.
6. Appropricate lubrication must be choosen when mechanical seal is installed.The installment size of the mechanical
seal must be guaranteed to the installment instruction.
7. Before the machine starts running,the hermetic compartment shall be full of medium and well lubricated.Dry friction
which may lead to the damage of the air-tightness is strict forbidden.
